TAG

TAG Tow Ball Mount Kit and Direct Fit Wiring Harness for Toyota Landcruiser 200 Series (08/2007 - 12/2021)

In stock
SKU: TL4171-K202
No reviews
$413.86
Specifications
  • Style 7 Pin Flat
  • Type Plugs & Sockets (UNT032)

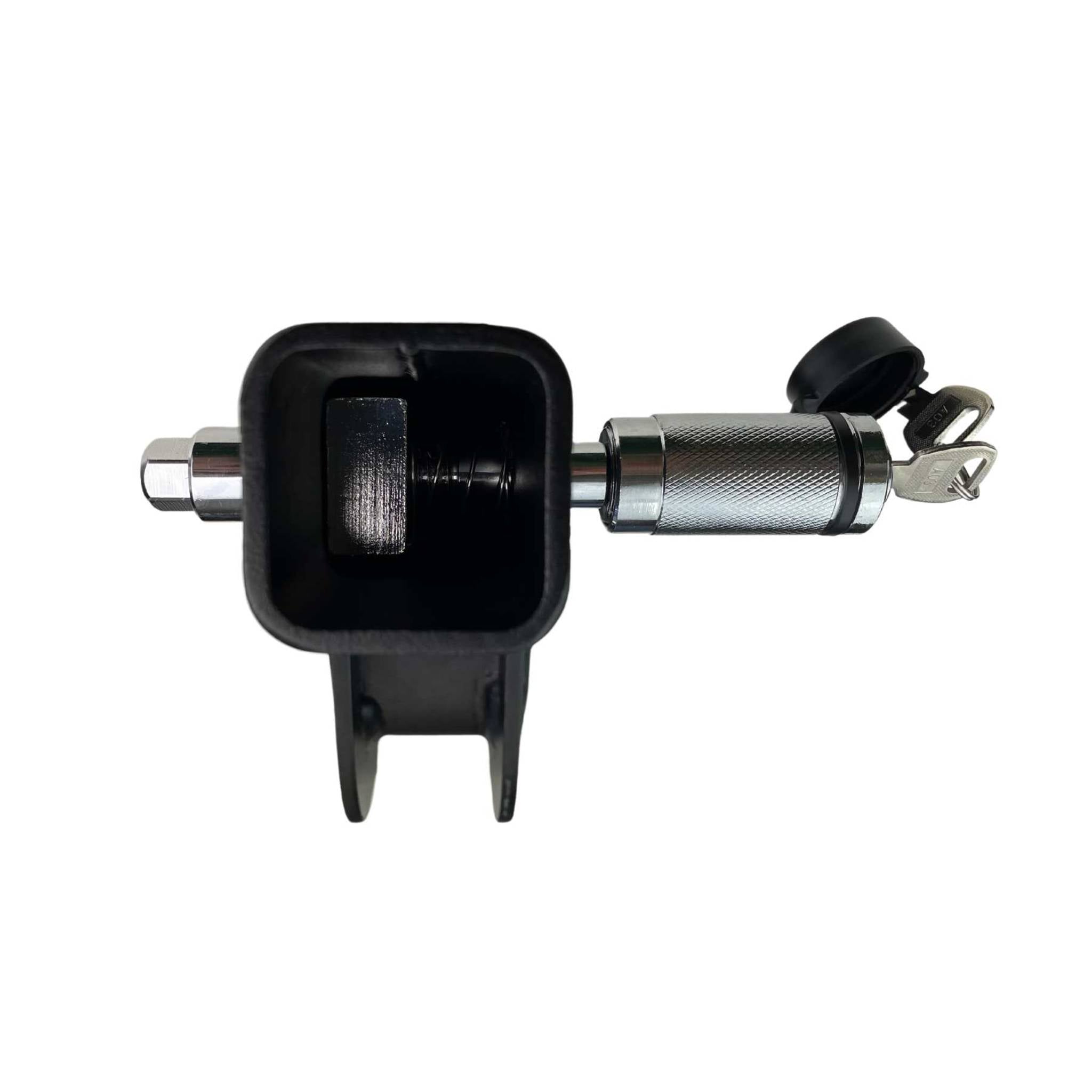

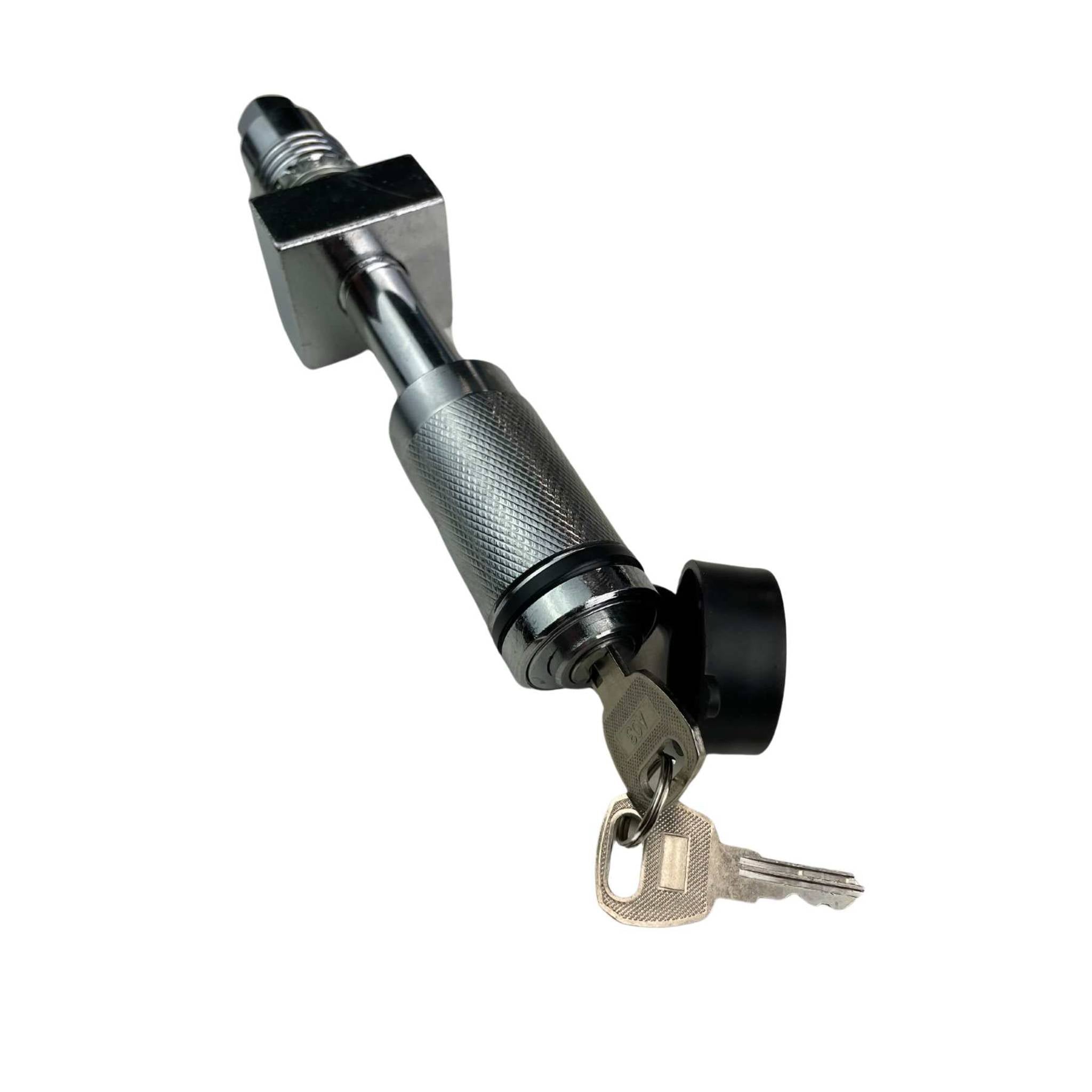

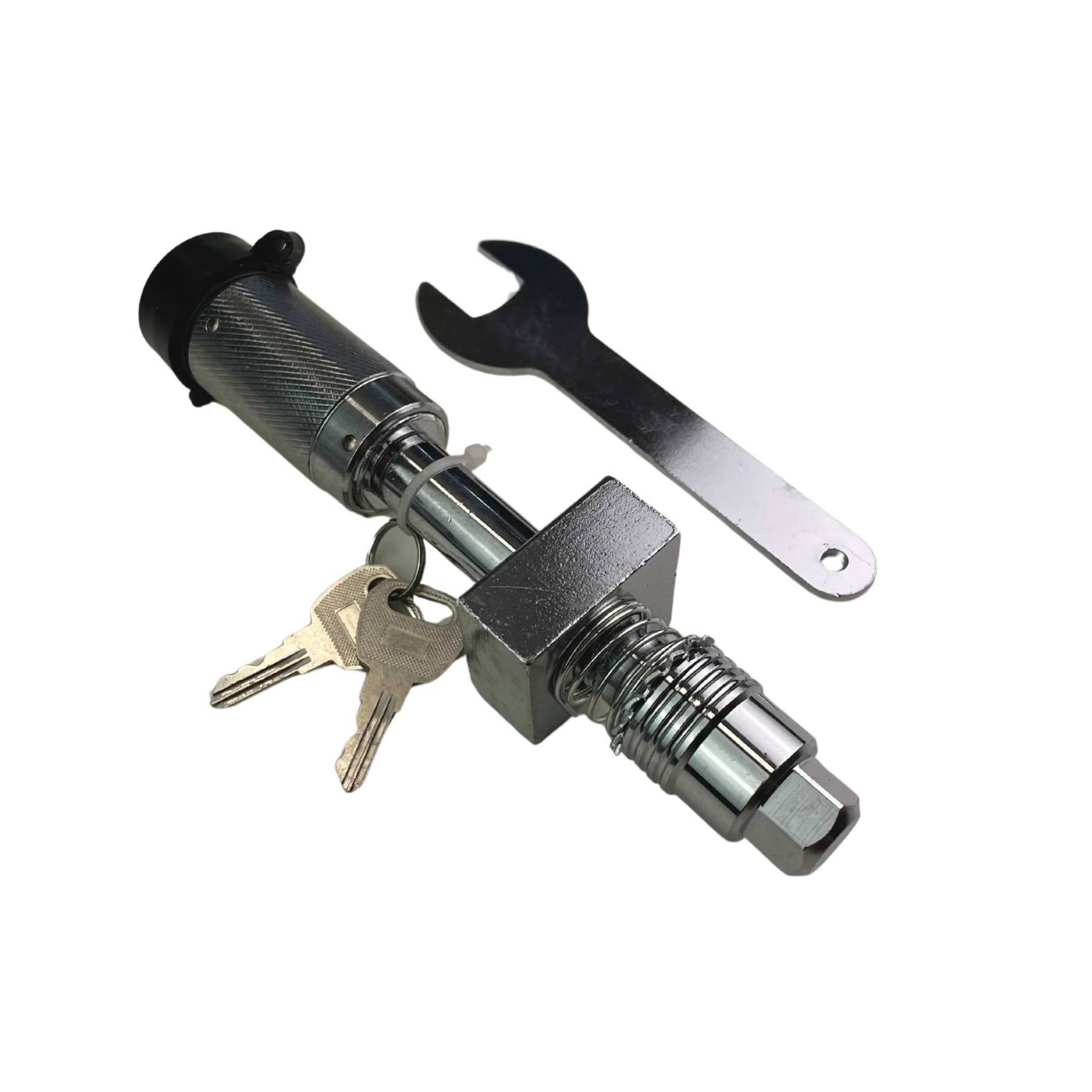

  • Type Security & Protection (UNT001AR)
  • Fitting time [min.] 30
  • Wiring option Direct Fit Wiring Harness
  • Reverse sensor cut off Not Applicable
  • Hitch type Heavy Duty 50mm Square
  • Tow ball mount class Heavy Duty (Class 4)
  • Gross trailer weight 3500
  • Ball weight [kg] 350
  • Drop 114mm
  • Rise Cannot be used in Rise Mode
  • Length (pin to ball) 219mm
  • Front to pin (mm) 251
  • Back to pin (mm) 90
  • Tongue face 105°
  • Coating Powder Coated
  • Length 341
Vehicle Applications

Toyota Landcruiser (08/2007 - 10/2021)

Make Model From To Body Series Engine Variant Drivetrain
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon VDJ200R 1VD-FTV | 4.5L | Diesel GX, LC200 ALTITUDE SPECIAL EDITION, LC200 GX Automatic 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon VDJ200R 1VD-FTV | 4.5L | Diesel GXL, LC200 GXL Automatic 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon VDJ200R 1VD-FTV | 4.5L | Diesel LC200 SAHARA, LC200 VX, SAHARA, VX Automatic 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 1VD-FTV | 4.5L | Diesel VDJ200R (with DPF) 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 1VD-FTV | 4.5L | Diesel VDJ200R (with DPF) 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon VDJ200 1VD-FTV | 4.5L | Diesel D-4D AWD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 1GR-FE | 4.0L | Petrol GRJ200R Automatic/Manual 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 1UR-FSE | 4.6L | Petrol URJ200R 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 1UR-FSE | 4.6L | Petrol URJ202R Automatic 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 1UR-FSE | 4.6L | Petrol URJ202R Automatic 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 1VD-FTV | 4.5L | Diesel VDJ200R Automatic 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 1VD-FTV | 4.5L | Diesel VDJ200R Automatic 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 1VD-FTV | 4.5L | Diesel VDJ200R 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 2UZ-FE | 4.7L | Petrol UZJ200R Automatic 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon 200 Series 2UZ-FE | 4.7L | Petrol UZJ200R Automatic 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon UZJ200 2UZ-FE | 4.7L | Petrol V8 4WD
TOYOTA LANDCRUISER 08/2007 10/2021 Wagon UZJ200 2UZ-FE | 4.7L | Petrol V8 4WD
Assembly Components

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Description

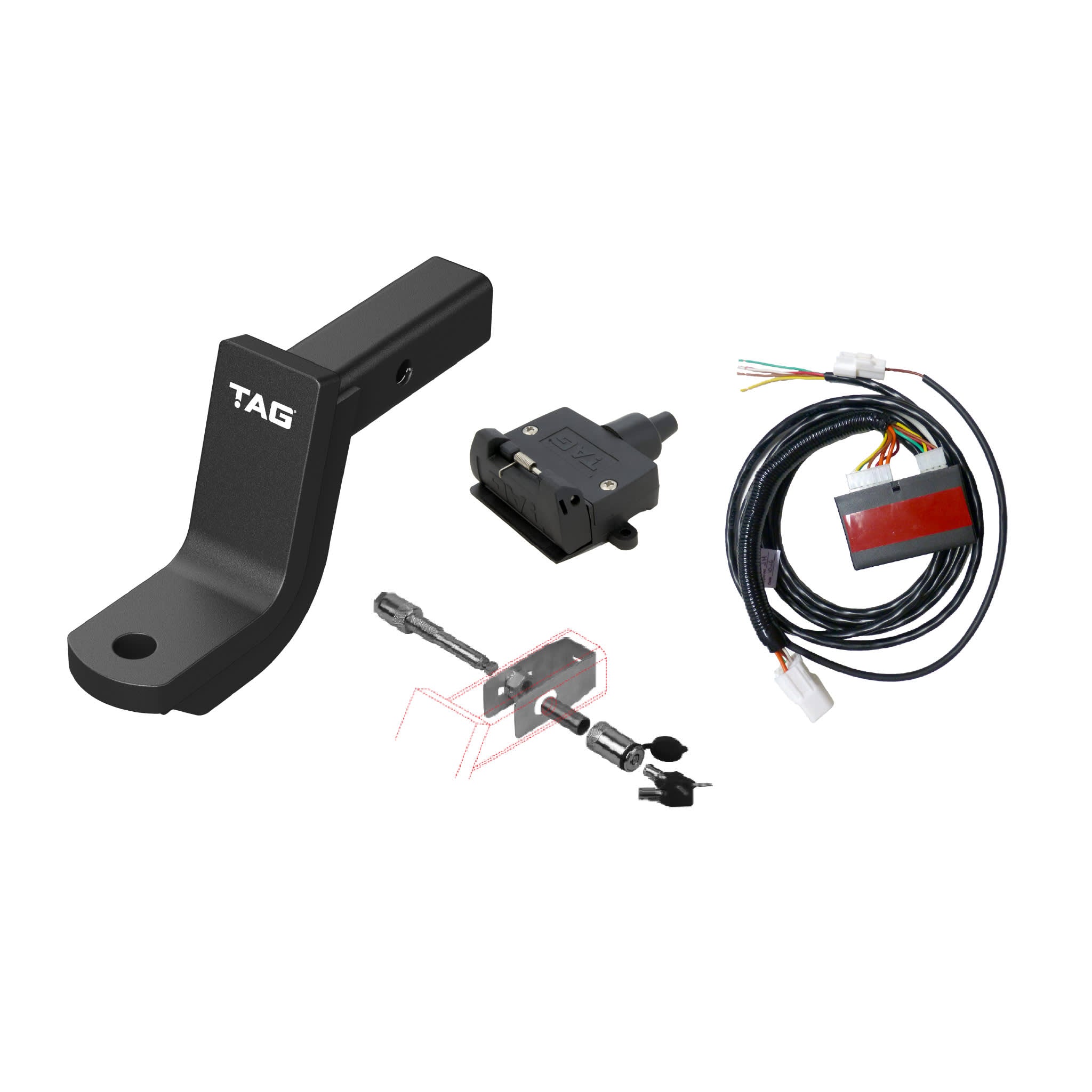

This kit includes

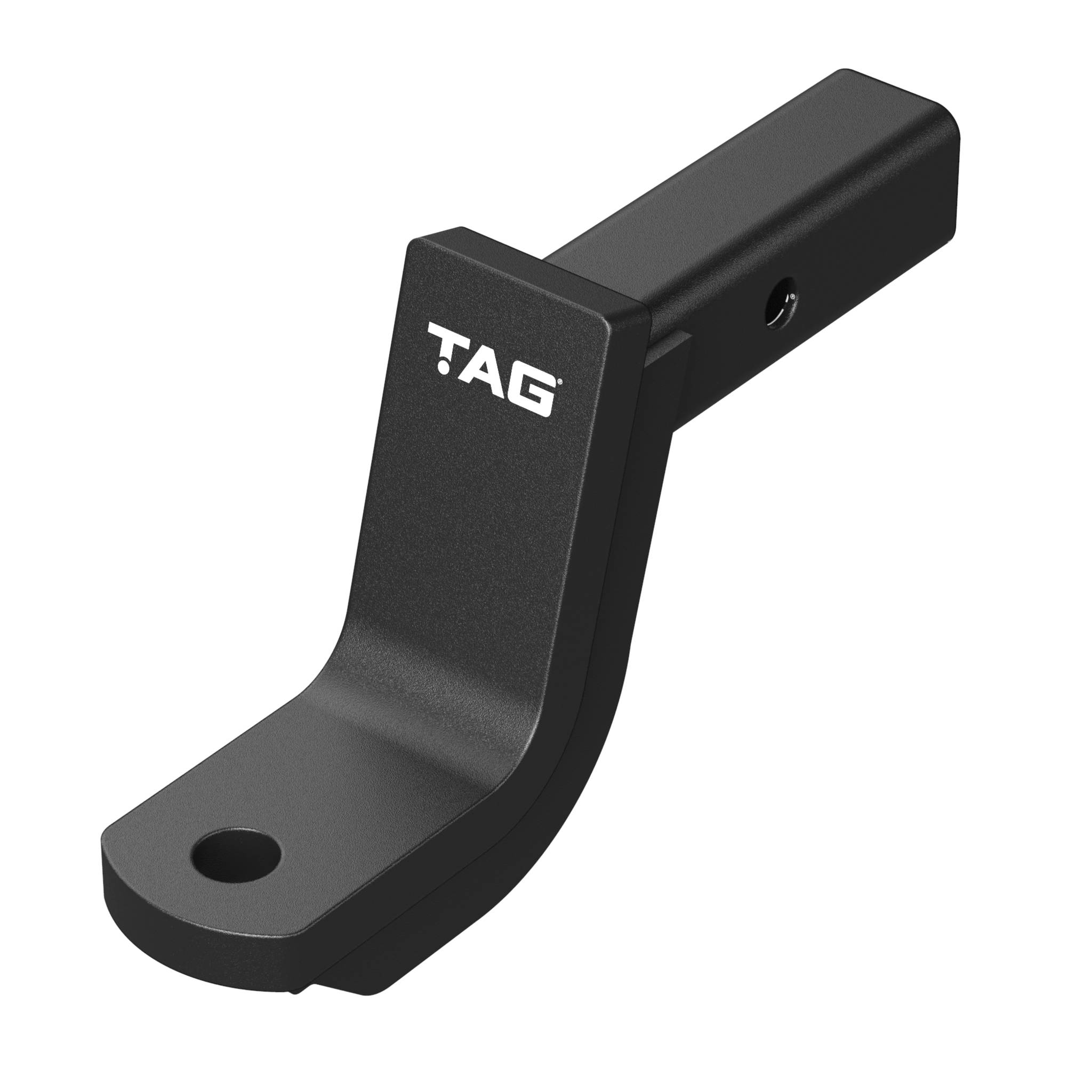

  • TAG Tow Ball Mount

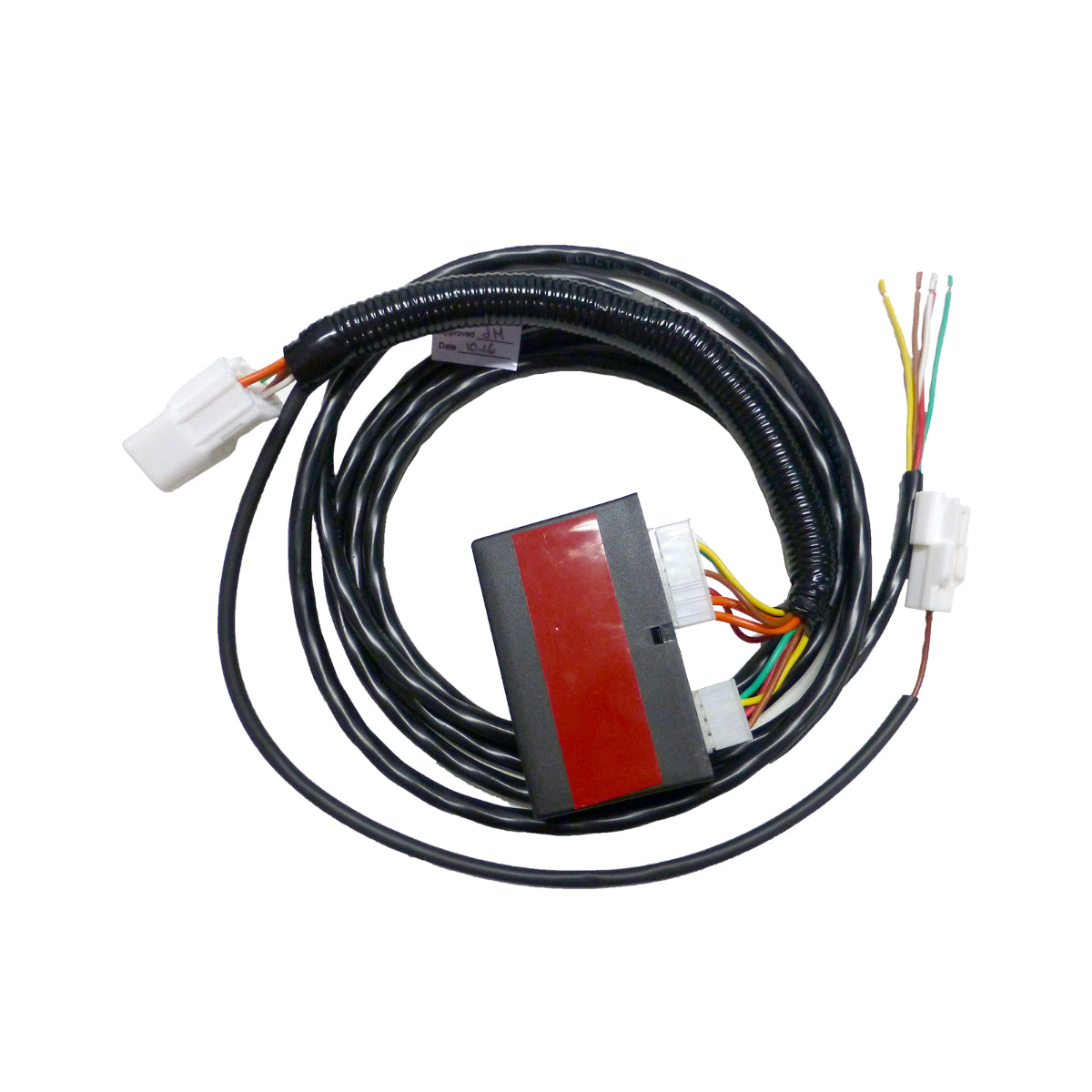

  • TAG Direct Fit Wiring Harnerss

  • TAG 7 Pin Flat Socket Vehicle Side

  • TAG Anti Rattle Pin

TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

  • Suits Toyota Landcruiser 200 Series

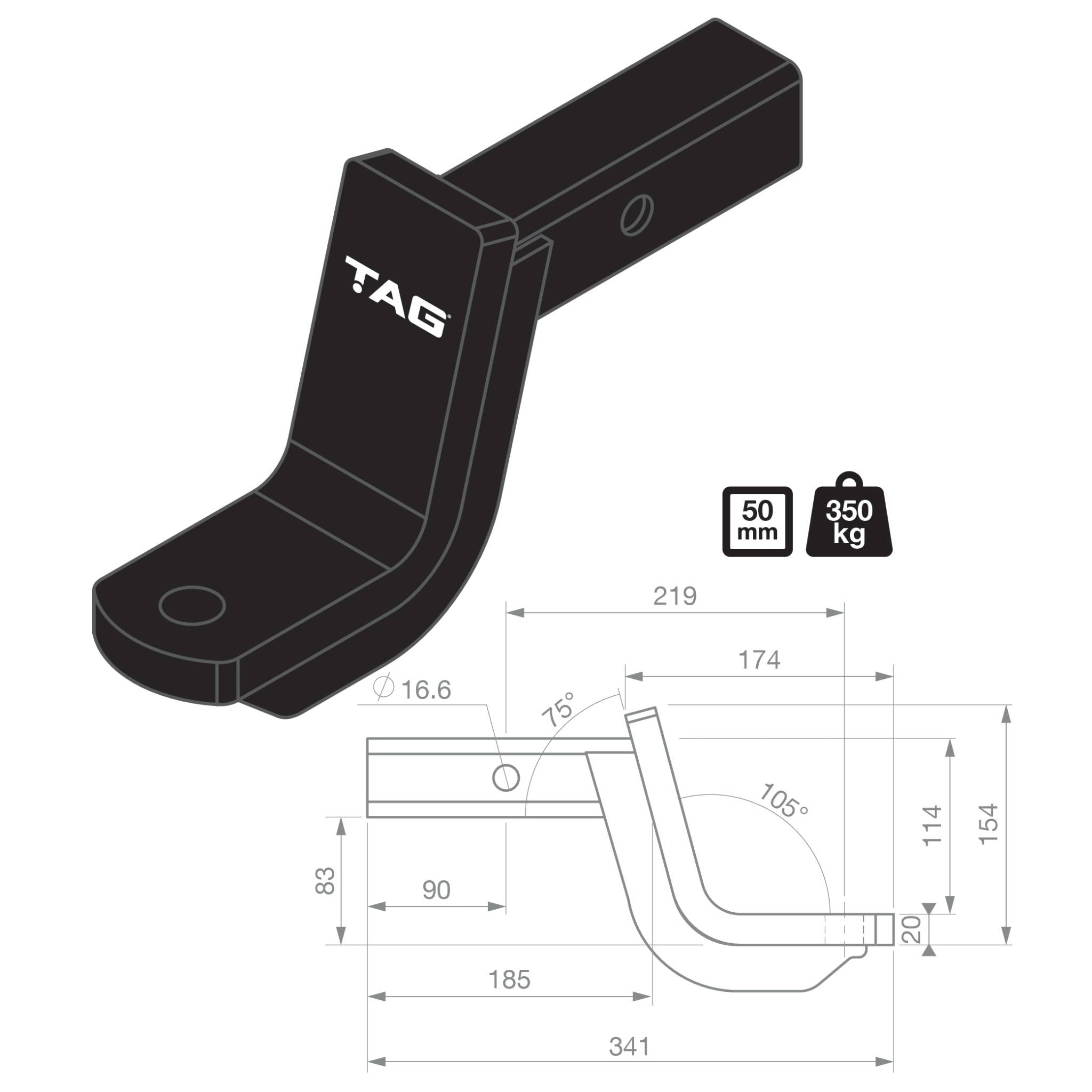

  • 219mm Long (Hitch Pin Hole to Tow Ball Hole)

  • 105 Tongue Face

  • Drop: 63mm

  • Can be mounted in Drop Mode Only

  • 3500kg Gross Trailer Weight

  • 350kg Ball Weight

  • Durable Powder-Coated Finish

  • ADR 62/02 Compliant

  • TAG Limited Lifetime Warranty

Tow Ball, R-Clip & Hitch Pin sold separately.

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
