TAG Heavy Duty Towbar & Direct Fit Wiring Kit for Mitsubishi Pajero NM NP Series (05/2000 - 10/2006)

Name: TAG Heavy Duty Towbar & Direct Fit Wiring Kit for Mitsubishi Pajero NM NP Series (05/2000 - 10/2006)
Brand: TAG
SKU: T4C284-K201
Price: 912.88 AUD
Availability: InStock

In stock

SKU: T4C284-K201

No reviews

$912.88

Product variants

Specifications

Style 7 Pin Flat
Type Plugs & Sockets
Fog cut off Not Applicable
Diagnostic coding Not Required
Reverse sensor cut off Not Applicable
Wiring option Direct Fit Wiring Harness
Fitting time [min.] 30 (UNT247)
Fitting time [min.] 60 (T4C284)
Towbar class Heavy Duty
Towbar capacity [kg] 3000
Ball weight [kg] 250
Tow ball mount L4240
Coating Enamel Immersion Dipped
Hitch type 50mm Square Hitch Receiver
Bumper removed during fitment No
Bumper cut out required Yes
Exposure Partially Concealed

Vehicle Applications

Mitsubishi Pajero (05/2000 - 06/2023)

Make	Model	From	To	Body	Generation	Chassis	Engine	Variant	Drivetrain
MITSUBISHI	PAJERO	05/2000	06/2023	SUV	-	-	4M41 \| 3.2L \| Diesel	-	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	SUV	-	-	4m41T \| 3.2L \| Diesel	EXCEED, GLS, GLX GLX5	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41 \| 3.2L \| Diesel	DI-D	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41 \| 3.2L \| Diesel	TD	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	SUV	-	-	4M41T \| 3.2L \| Diesel	-	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41 \| 3.2L \| Diesel	DI-D	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41 \| 3.2L \| Diesel	DI-D	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	SUV	-	-	4M41T \| 3.2L \| Diesel	-	Manual 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	i	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	V6	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	V6	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	-	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	R\| X	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41T \| 3.2L \| Diesel	R\| X	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41 \| 3.2L \| Diesel	DI-D	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41 \| 3.2L \| Diesel	DI-D	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	-	Manual 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	V6	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41T \| 3.2L \| Diesel	GLX\| VRX	Manual 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41T \| 3.2L \| Diesel	GLX\| VRX\| EXCEED	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G74 (DOHC 24V) \| 3.5L \| Petrol	-	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	GLS\| VRX\| GLX	Manual 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	-	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	i	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G75 \| 3.8L \| Petrol	GLS\| VRX\| GLX\| EXCEED	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41T \| 3.2L \| Diesel	GLX\| GLS\| EXCEED\| VRS	Manual 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41T \| 3.2L \| Diesel	GLX\| GLS\| EXCEED\| VRX	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	3.2L \| Diesel	D	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41 \| 3.2L \| Diesel	Di-D	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41 \| 3.2L \| Diesel	DI-D	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	2.5L \| Diesel	TDi	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G74 (SOHC 24V) \| 3.5L \| Petrol	i	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G74 (DOHC 24V) \| 3.5L \| Petrol	i	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G74 (DOHC 24V) \| 3.5L \| Petrol	-	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G74 \| 3.5L \| Petrol	GL\| GLX\| GLS\| EXCEED	Manual 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	6G74 \| 3.5L \| Petrol	GLX\| GLS\| EXCEED	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M40-T \| 2.8L \| Diesel	TD	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M40-T \| 2.8L \| Diesel	TD	AWD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M40T \| 2.8L \| Diesel	GL\| GLX\| GLS\| EXCEED	Manual 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41T \| 3.2L \| Diesel	GLX\| GLS\| EXCEED	Automatic 4WD
MITSUBISHI	PAJERO	05/2000	06/2023	Wagon	-	-	4M41T \| 3.2L \| Diesel	GLX\| GLS\| EXCEED	Manual 4WD

Mitsubishi Pajero (02/2000 - 01/2007)

Make	Model	From	To	Body	Generation	Chassis	Engine	Variant	Drivetrain
MITSUBISHI	PAJERO	04/2000	01/2007	Wagon	-	-	6G74 (DOHC 24V) \| 3.5L \| Petrol	-	AWD
MITSUBISHI	PAJERO	06/2004	09/2006	Wagon	-	-	6G75 \| 3.8L \| Petrol	GLS\| VRX\| GLX	Manual 4WD
MITSUBISHI	PAJERO	09/2003	10/2006	Wagon	-	-	6G75 \| 3.8L \| Petrol	-	AWD
MITSUBISHI	PAJERO	09/2003	10/2006	Wagon	-	-	6G75 \| 3.8L \| Petrol	i	AWD
MITSUBISHI	PAJERO	08/2003	09/2006	Wagon	-	-	6G75 \| 3.8L \| Petrol	GLS\| VRX\| GLX\| EXCEED	Automatic 4WD
MITSUBISHI	PAJERO	10/2002	12/2006	Wagon	-	-	4M41T \| 3.2L \| Diesel	GLX\| GLS\| EXCEED\| VRS	Manual 4WD
MITSUBISHI	PAJERO	10/2002	09/2006	Wagon	-	-	4M41T \| 3.2L \| Diesel	GLX\| GLS\| EXCEED\| VRX	Automatic 4WD
MITSUBISHI	PAJERO	04/2000	12/2006	Wagon	-	-	3.2L \| Diesel	D	AWD
MITSUBISHI	PAJERO	04/2000	10/2006	Wagon	-	-	4M41 \| 3.2L \| Diesel	Di-D	AWD
MITSUBISHI	PAJERO	04/2000	10/2006	Wagon	-	-	4M41 \| 3.2L \| Diesel	DI-D	AWD
MITSUBISHI	PAJERO	04/2000	12/2006	Wagon	-	-	2.5L \| Diesel	TDi	AWD
MITSUBISHI	PAJERO	05/2000	04/2004	Wagon	-	-	6G74 (DOHC 24V) \| 3.5L \| Petrol	i	AWD
MITSUBISHI	PAJERO	05/2000	04/2004	Wagon	-	-	6G74 (SOHC 24V) \| 3.5L \| Petrol	i	AWD
MITSUBISHI	PAJERO	04/2000	04/2004	Wagon	-	-	6G74 (DOHC 24V) \| 3.5L \| Petrol	-	AWD
MITSUBISHI	PAJERO	02/2000	12/2004	Wagon	-	-	6G74 \| 3.5L \| Petrol	GL\| GLX\| GLS\| EXCEED	Manual 4WD

Assembly Components

Basic 1-Piece Design Towbar.

This Kit Includes:

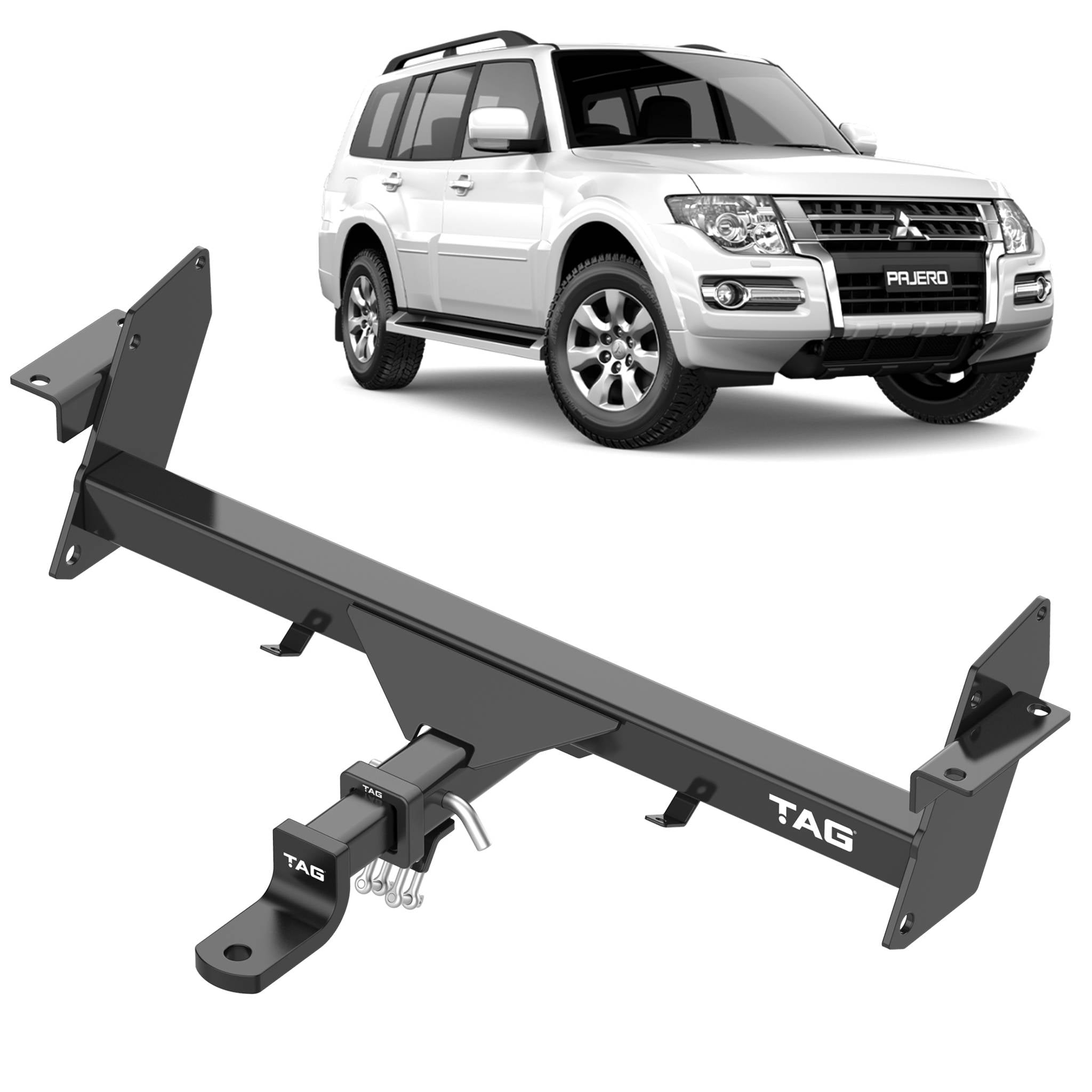

TAG Heavy Duty Towbar

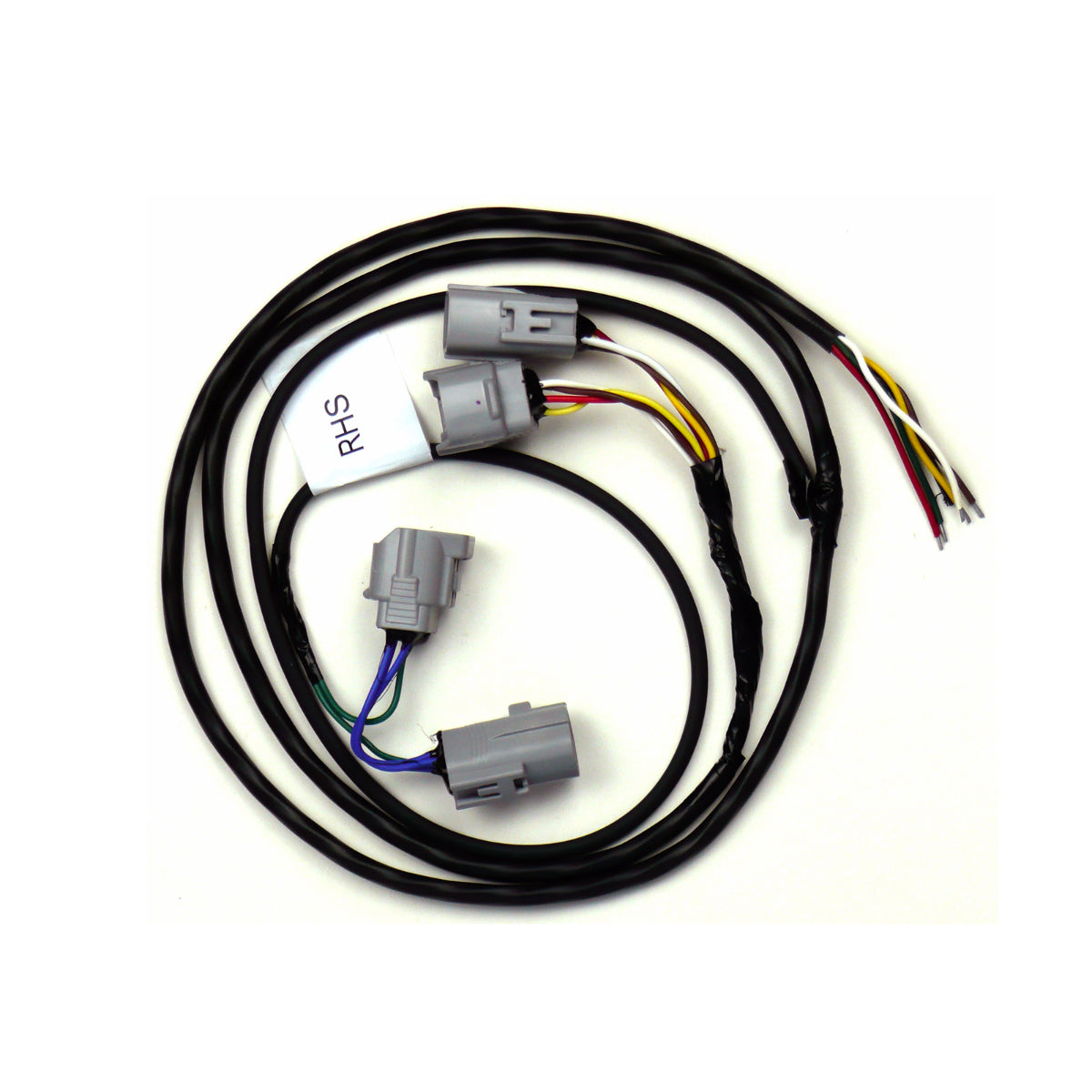

TAG Direct Fit Wiring Harness
TAG 7 Pin Flat Socket - Vehicle Side

TAG Heavy Duty Towbars are designed and manufactured in Australia.

Consult your Vehicle Manual for Maximum Towing Capacity as this can be different between models
Towbar is compliant with all Vehicles listed.
Utilises factory mounting points for ease of fitment
Durable Powder Coated Finish.
Class 4 Receiver - 50mm x 50mm Hitch
TAG Limited Lifetime Warranty
Towbar includes - towball, ballmount, pin & clip and dshackles
Tow Rating 2500kg/250kg

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
