TAG Extreme Recovery Towbar & Direct Fit Wiring Kit for Styleside Mazda BT-50 & Isuzu D-MAX (07/2020 - on)

Name: TAG Extreme Recovery Towbar & Direct Fit Wiring Kit for Styleside Mazda BT-50 & Isuzu D-MAX (07/2020 - on)
Brand: TAG
SKU: TXR822-K201
Price: 1675.99 AUD
Availability: InStock

In stock

SKU: TXR822-K201

No reviews

Ships in 2-5 business days

$1,675.99

Product variants

Specifications

Diagnostic coding Not Required
Reverse sensor cut off Automatic
Wiring option Direct Fit ECU
Fitting time [min.] 30 (UNT351)
Fitting time [min.] 90 (TXR822)
Ball weight [kg] 350
Towbar class Heavy Duty (4x4 Recovery)
Towbar capacity [kg] 3500
Recovery load-tested 4500kg WLL
Recovery points 2
Coating Textured Powder Coated
Bumper removed during fitment No
Bumper cut out required No
Exposure Exposed
Hitch type 50mm Square Hitch Receiver

Vehicle Applications

Isuzu D-MAX (06/2020 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
ISUZU	D-MAX	10/2021	-	Cab Chassis	TFR, TFS	RZ4E-TC \| 1.9L \| Diesel	-	RWD
ISUZU	D-MAX	07/2020	-	Cab Chassis	-	4JJ3-TCX \| 3.0L \| Diesel	SX	Automatic/Manual 4WD
ISUZU	D-MAX	07/2020	-	Cab Chassis	-	4JJ3-TCX \| 3.0L \| Diesel	SX	Automatic/Manual RWD
ISUZU	D-MAX	07/2020	-	Single Cab	-	4JJ3-TCX \| 3.0L \| Diesel	SX	Automatic/Manual 4WD
ISUZU	D-MAX	07/2020	-	Single Cab	-	4JJ3-TCX \| 3.0L \| Diesel	SX	Automatic/Manual RWD
ISUZU	D-MAX	07/2020	-	Ute	TFS40	4JJ3-TCX \| 3.0L \| Diesel	CRD	Automatic/Manual 4WD
ISUZU	D-MAX	07/2020	-	Ute	TFR40	4JJ3-TCX \| 3.0L \| Diesel	LS-U, SX	Automatic RWD
ISUZU	D-MAX	07/2020	-	Ute	TFS40	4JJ3-TCX \| 3.0L \| Diesel	LS-U, SX SPACECAB	Automatic/Manual 4WD
ISUZU	D-MAX	07/2020	-	Ute	TFS40	4JJ3-TCX \| 3.0L \| Diesel	SX	Automatic/Manual 4WD
ISUZU	D-MAX	07/2020	-	Ute	TFS	4JJ3-TCX \| 3.0L \| Diesel	SX	Automatic/Manual 4WD
ISUZU	D-MAX	07/2020	-	Ute	TFR40	4JJ3-TCX \| 3.0L \| Diesel	SX	Automatic/Manual RWD
ISUZU	D-MAX	07/2020	-	Ute	TFR40	4JJ3-TCX \| 3.0L \| Diesel	SX SPACECAB	Automatic RWD
ISUZU	D-MAX	06/2020	-	Cab Chassis	TFR, TFS	3.0L \| Diesel	DDI	4WD
ISUZU	D-MAX	06/2020	-	Cab Chassis	TFR, TFS	4JJ3-TCX \| 3.0L \| Diesel	DDI	AWD
ISUZU	D-MAX	06/2020	-	Cab Chassis	TFR, TFS	4JJ3-TCX \| 3.0L \| Diesel	DDI	RWD
ISUZU	D-MAX	06/2020	-	Cab Chassis	TFR, TFS (TFR40J)	4JJ3-TCX \| 3.0L \| Diesel	DDI	RWD

Mazda BT-50 (07/2020 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
MAZDA	BT-50	11/2021	-	Cab Chassis	TF	RZ4E-TC \| 1.9L \| Diesel	-	AWD
MAZDA	BT-50	11/2021	-	Cab Chassis	TF	RZ4E-TC \| 1.9L \| Diesel	-	RWD
MAZDA	BT-50	11/2021	-	Cab Chassis	819C	RZ4E-TC \| 2.0L \| Diesel	XS	Automatic RWD
MAZDA	BT-50	11/2021	-	Ute	TF	RZ4E-TC \| 1.9L \| Diesel	-	4WD
MAZDA	BT-50	11/2021	-	Ute	819C	RZ4E-TC \| 2.0L \| Diesel	XS	Automatic 4WD
MAZDA	BT-50	11/2021	-	Ute	B19C	RZ4E-TC \| 2.0L \| Diesel	XS	Automatic RWD
MAZDA	BT-50	01/2021	-	Ute	TF	RZ4E-TC \| 1.9L \| Diesel	4x2	RWD
MAZDA	BT-50	08/2020	-	Cab Chassis	B30B	4JJ3-TCX \| 3.0L \| Diesel	XT	Automatic/Manual 4WD
MAZDA	BT-50	08/2020	-	Cab Chassis	B30B	4JJ3-TCX \| 3.0L \| Diesel	XT	Automatic/Manual 4WD
MAZDA	BT-50	08/2020	-	Cab Chassis	B30B	4JJ3-TCX \| 3.0L \| Diesel	XT	Automatic RWD
MAZDA	BT-50	08/2020	-	Cab Chassis	B30B	4JJ3-TCX \| 3.0L \| Diesel	XT	Automatic RWD
MAZDA	BT-50	08/2020	-	Cab Chassis	B30B	4JJ3-TCX \| 3.0L \| Diesel	XT FREESTYLE	Automatic/Manual 4WD
MAZDA	BT-50	08/2020	-	Cab Chassis	B30B	4JJ3-TCX \| 3.0L \| Diesel	XT FREESTYLE	Automatic RWD
MAZDA	BT-50	08/2020	-	Ute	B30B	4JJ3-TCX \| 3.0L \| Diesel	GT, XT, XTR	Automatic/Manual 4WD
MAZDA	BT-50	08/2020	-	Ute	B30B	4JJ3-TCX \| 3.0L \| Diesel	XT, XTR	Automatic RWD
MAZDA	BT-50	07/2020	-	Cab Chassis	TF	4JJ3-TCX \| 3.0L \| Diesel	-	4WD
MAZDA	BT-50	07/2020	-	Cab Chassis	TF (TFS40JDR, TFS40JPR)	4JJ3-TCX \| 3.0L \| Diesel	-	AWD
MAZDA	BT-50	07/2020	-	Cab Chassis	TF	4JJ3-TCX \| 3.0L \| Diesel	-	RWD
MAZDA	BT-50	07/2020	-	Cab Chassis	TF (TFR40JDR, TFR40JPR)	4JJ3-TCX \| 3.0L \| Diesel	-	RWD

Assembly Components

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Extreme Recovery towbar to suit styleside tub body vehicles with a rear step. For cab chassis vehicles see TXR800-K201.

This Kit Includes:

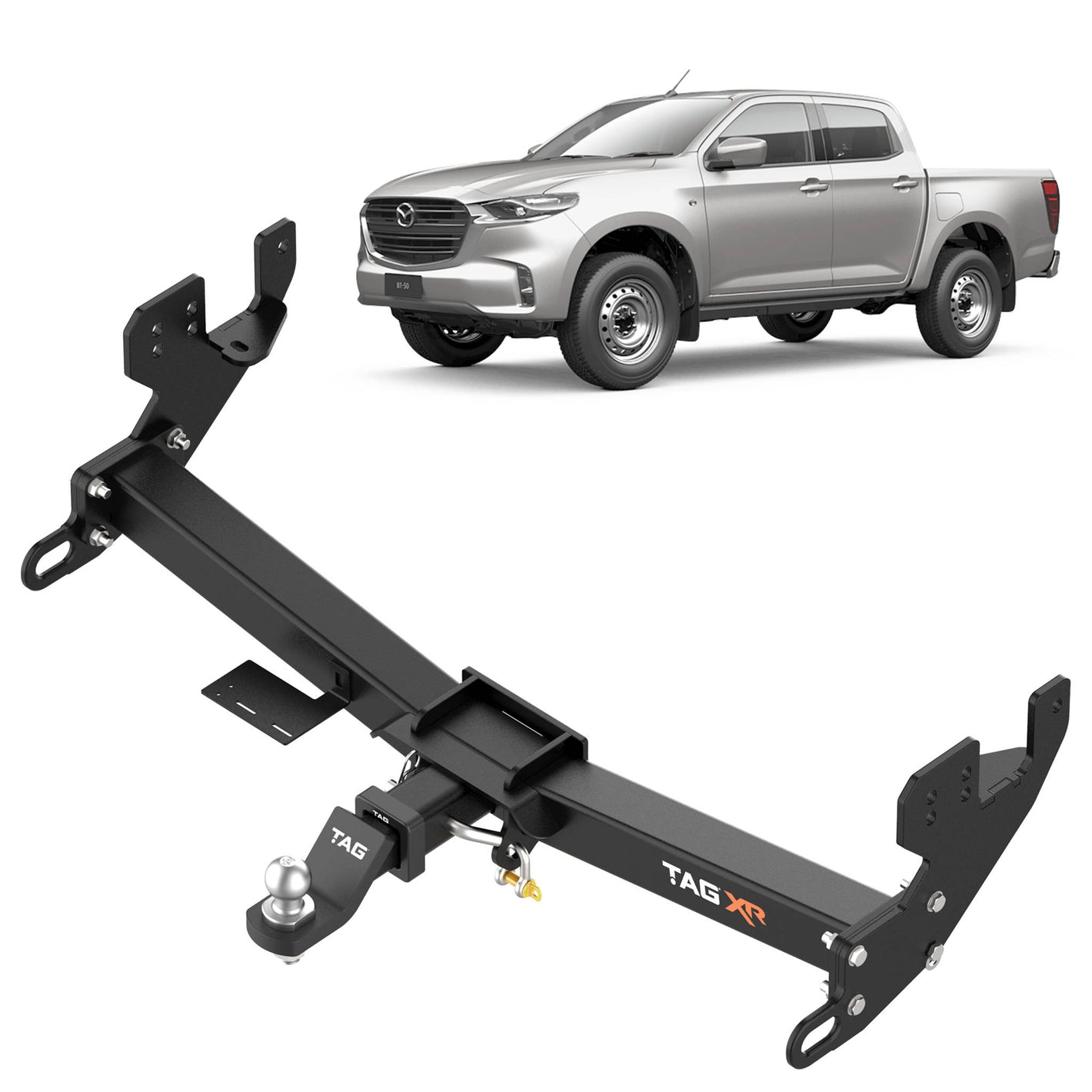

TAG 4x4 Recovery Towbar - Suits Styleside models

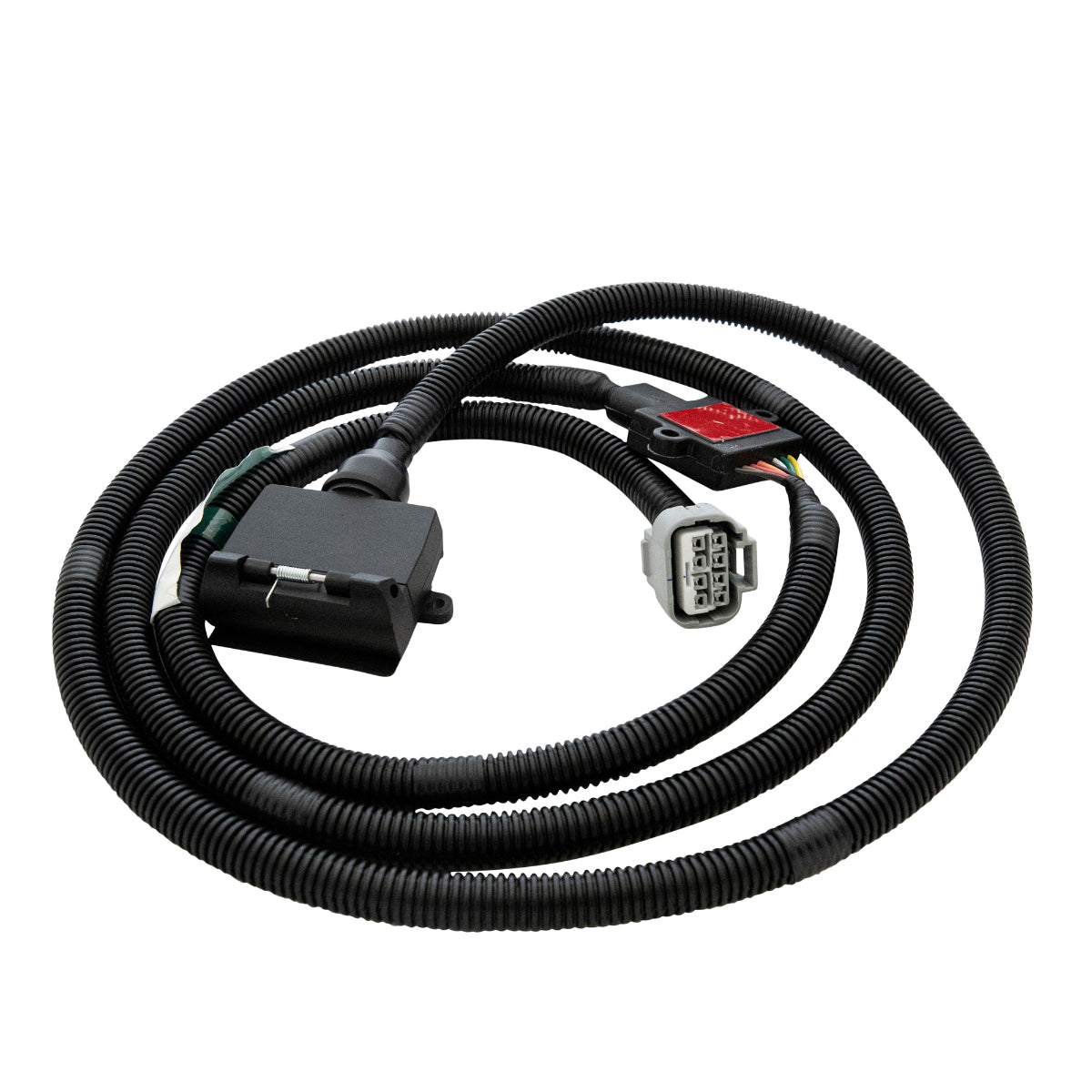

TAG Towbar Wiring Direct Fit - ECU
TAG 7 Pin Flat Socket - Vehicle Side

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

75mm x 75mm Extreme Duty Reinforced Crossbar
Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Highly durable, textured Extreme Duty Powder Coated Finish
Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
