TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 75/79 Series

Name: TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 75/79 Series
Brand: TAG
SKU: TXR793-K201
Price: 1481.88 AUD
Availability: InStock

In stock

SKU: TXR793-K201

No reviews

Ships in 2-5 business days

$1,481.88

Product variants

Specifications

Diagnostic coding Not Required
Fog cut off Not Applicable
Reverse sensor cut off Not Applicable
Wiring option Direct Fit Wiring Harness
Fitting time [min.] 30 (UNT272)
Fitting time [min.] 120 (TXR793)
Style 7 Pin Flat
Type Plugs & Sockets
Towbar capacity [kg] 4500
Ball weight [kg] 450
Towbar class Heavy Duty (4x4 Recovery)
Recovery load-tested 4500kg WLL
Recovery points 2
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4171TXR
Coating Textured Powder Coated
Bumper removed during fitment No
Bumper cut out required No
Exposure Exposed

Vehicle Applications

Toyota Landcruiser (11/1984 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	LANDCRUISER	09/2023	-	Cab Chassis	GDJL79R	1GD-FTV \| 2.8L \| Diesel	D-4D 3.5t	4WD
TOYOTA	LANDCRUISER	09/2023	-	Cab Chassis	GDJL79	1GDFTV \| 2.8L \| Diesel	GX, GX+, WORKMATE	Automatic 4WD
TOYOTA	LANDCRUISER	09/2023	-	Cab Chassis	GDJL79	1GDFTV \| 2.8L \| Diesel	GXL	Automatic 4WD
TOYOTA	LANDCRUISER	09/2023	-	Cab Chassis	GDJL79	1GDFTV \| 2.8L \| Diesel	GXL	Automatic 4WD
TOYOTA	LANDCRUISER	09/2023	-	Cab Chassis	VDJL79R	1VD-FTV \| 4.5L \| Diesel	TD 32V 3.5t	4WD
TOYOTA	LANDCRUISER	09/2023	-	Cab Chassis	GDJL79	1GDFTV \| 2.8L \| Diesel	WORKMATE	Automatic 4WD
TOYOTA	LANDCRUISER	09/2022	-	Cab Chassis	VDJ79	1VDFTV \| 4.5L \| -	GX, GXL, Workmate	Manual 4WD
TOYOTA	LANDCRUISER	09/2022	-	Cab Chassis	VDJ79R	1VDFTV \| 4.5L \| Diesel	GXL, Workmate	Manual 4WD
TOYOTA	LANDCRUISER	09/2022	-	Cab Chassis	VDJ79	1VDFTV \| 4.5L \| Diesel	GXL, Workmate	Manual 4WD
TOYOTA	LANDCRUISER	09/2022	-	Single Cab	VJD79R	1VDFTV \| 4.5L \| Diesel	GX, GXL, Workmate	Manual 4WD
TOYOTA	LANDCRUISER	09/2022	-	Single Cab	VDJ79R	1VDFTV \| 4.5L \| Diesel	GX, GXL, Workmate	Manual 4WD
TOYOTA	LANDCRUISER	08/2016	-	Cab Chassis	HZJ79R	1HZ \| 4.2L \| Diesel	-	Manual 4WD
TOYOTA	LANDCRUISER	01/2016	-	Double Cab	79 Series	1VD-FTV \| 4.5L \| Diesel	VDJ79R (with DPF)	AWD
TOYOTA	LANDCRUISER	01/2016	-	Single Cab	79 Series	1VD-FTV \| 4.5L \| Diesel	VDJ79R (with DPF)	AWD
TOYOTA	LANDCRUISER	01/2007	-	Single Cab	79 Series	1GR-FE \| 4.0L \| Petrol	GRJ79R	Automatic/Manual 4WD
TOYOTA	LANDCRUISER	08/1999	-	Cab Chassis	HZJ79L-TJM	1H-Z \| 4.2L \| Diesel	D MINE SPEC	AWD
TOYOTA	LANDCRUISER	10/2012	09/2022	Cab Chassis	79 Series	1VD-FTV \| 4.5L \| Diesel	VDJ79R, 70TH ANNIVERSARY SPECIAL EDITION, WORKMATE	Manual 4WD
TOYOTA	LANDCRUISER	03/2007	09/2022	Single Cab	79 Series	1VD-FTV \| 4.5L \| Diesel	VDJ79R, 70TH ANNIVERSARY SPECIAL EDITION, GX, GXL, WORKMATE	Manual 4WD
TOYOTA	LANDCRUISER	03/2007	09/2022	Single Cab	79 Series	1VD-FTV \| 4.5L \| Diesel	VDJ79R, 70TH ANNIVERSARY SPECIAL EDITION, GX, GXL, WORKMATE	Manual 4WD
TOYOTA	LANDCRUISER	01/2007	08/2022	Cab Chassis	VDJ79R	1VD-FTV \| 4.5L \| Diesel	TD 32V	AWD
TOYOTA	LANDCRUISER	01/2007	08/2022	Single Cab	VDJ79R	1VD-FTV \| 4.5L \| Diesel	TD 32V	AWD
TOYOTA	LANDCRUISER	10/2012	10/2016	Double Cab	79 Series	1VD-FTV \| 4.5L \| Diesel	VDJ79R	4WD
TOYOTA	LANDCRUISER	11/2001	06/2007	Single Cab	79 Series	1HD-FTE \| 4.2L \| Diesel	HDJ79R	Manual 4WD
TOYOTA	LANDCRUISER	11/2001	06/2007	Single Cab	79 Series	1HD-FTE \| 4.2L \| Diesel	HDJ79R	Manual 4WD
TOYOTA	LANDCRUISER	08/2001	01/2007	Cab Chassis	HDJ79R	1HD-FT \| 4.2L \| Diesel	TD 24V	AWD
TOYOTA	LANDCRUISER	08/2001	01/2007	Single Cab	HDJ79R	1HD-FT \| 4.2L \| Diesel	TD 24V	AWD
TOYOTA	LANDCRUISER	10/1999	10/2007	Single Cab	79 Series	1H-Z \| 4.2L \| Diesel	HZJ79R	Manual 4WD
TOYOTA	LANDCRUISER	01/1999	01/2007	Single Cab	79 Series	1FZ-FE \| 4.5L \| Petrol	FZJ79R	Manual 4WD
TOYOTA	LANDCRUISER	01/1999	01/2007	Single Cab	79 Series	1H-Z \| 4.2L \| Diesel	HZJ79R	AWD
TOYOTA	LANDCRUISER	01/1990	01/2007	Single Cab	HZJ75RP, HZJ79R	1H-Z \| 4.2L \| Diesel	D	AWD
TOYOTA	LANDCRUISER	01/1990	01/2007	Single Cab	HZJ75RP, HZJ79R	1H-Z \| 4.2L \| Diesel	D	AWD
TOYOTA	LANDCRUISER	08/1999	04/2006	Single Cab	FZJ79R	1FZ-FE \| 4.5L \| Petrol	MPFi	AWD
TOYOTA	LANDCRUISER	08/1999	04/2006	Single Cab	FZJ79R	1FZ-FE \| 4.5L \| Petrol	MPFi	AWD
TOYOTA	LANDCRUISER	08/1992	08/1999	Single Cab	FZJ75RP	1FZ-FE \| 4.5L \| Petrol	-	AWD
TOYOTA	LANDCRUISER	08/1992	08/1999	Single Cab	FZJ75RP	1FZ-FE \| 4.5L \| Petrol	-	AWD
TOYOTA	LANDCRUISER	01/1992	01/1999	Single Cab	75 Series	1FZ-FE \| 4.5L \| Petrol	FZJ75R	Manual 4WD
TOYOTA	LANDCRUISER	03/1990	08/1999	Ute	75 Series	1H-Z \| 4.2L \| Diesel	HZJ75R	Manual 4WD
TOYOTA	LANDCRUISER	03/1990	11/1999	Ute	75 Series	1H-Z \| 4.2L \| Diesel	HZJ75R	4WD
TOYOTA	LANDCRUISER	01/1985	12/1993	Wagon	75 Series	3F \| 4.0L \| Petrol	FJ75R	Automatic/Manual 4WD
TOYOTA	LANDCRUISER	01/1985	10/1992	Single Cab	75 Series	3F \| 4.0L \| Petrol	FJ75R	Manual 4WD
TOYOTA	LANDCRUISER	01/1990	01/1991	Ute	75 Series	1P-Z \| 3.5L \| Diesel	-	4WD
TOYOTA	LANDCRUISER	11/1984	01/1990	Single Cab	HJ75RP	2H \| 4.0L \| Diesel	D	AWD
TOYOTA	LANDCRUISER	11/1984	01/1990	Single Cab	HJ75RP	2H \| 4.0L \| Diesel	D	AWD
TOYOTA	LANDCRUISER	11/1984	03/1990	Ute	75 Series	2H \| 4.0L \| Diesel	HJ75R	Manual 4WD
TOYOTA	LANDCRUISER	11/1984	12/1989	Cab Chassis	FJ75RP	3F \| 4.0L \| Petrol	-	4WD
TOYOTA	LANDCRUISER	11/1984	12/1989	Single Cab	75 Series	3B \| 3.4L \| Diesel	BJ75R	Manual 4WD

Assembly Components

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Suits single and double cab vehicles including the face lifted models.

This Kit Includes:

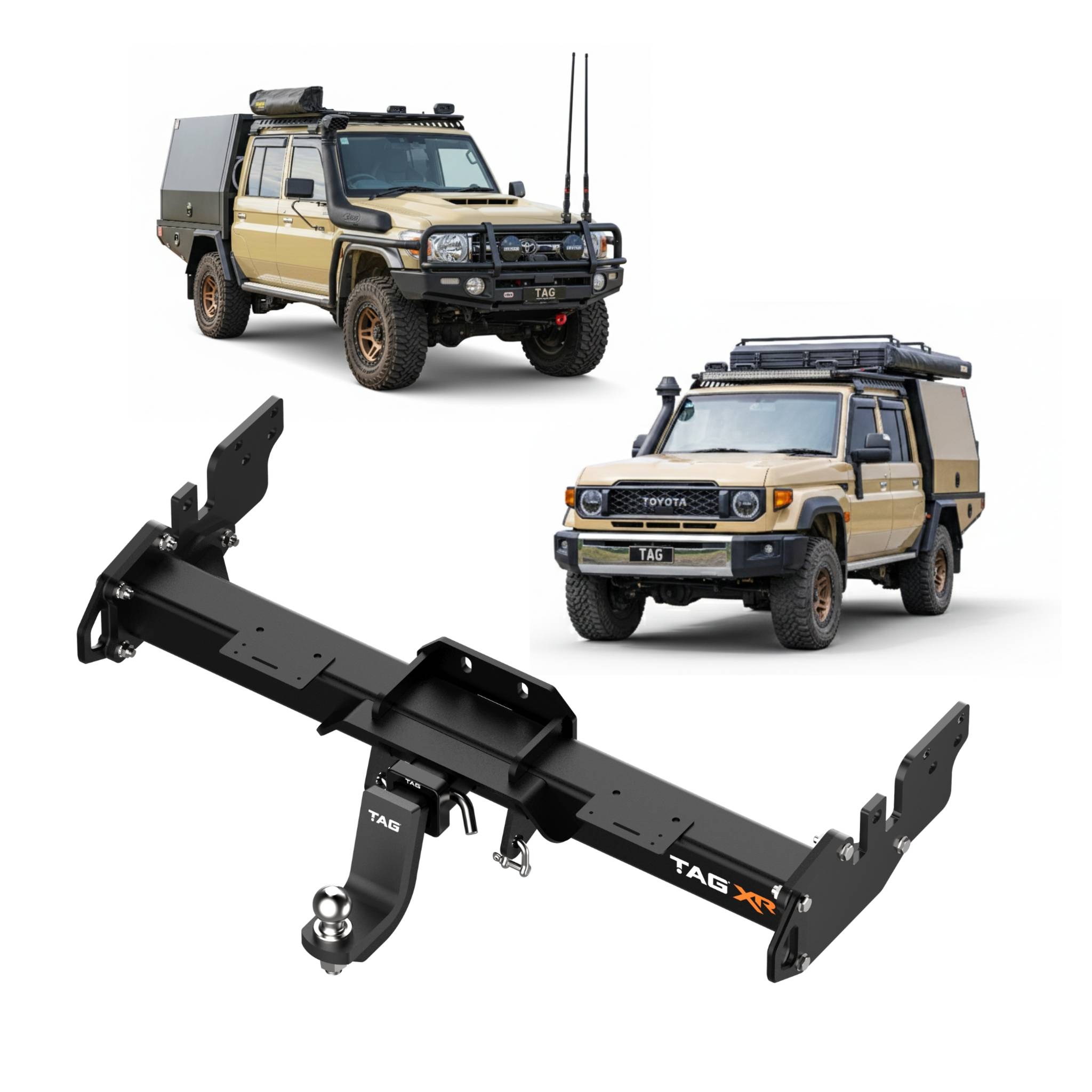

TAG 4x4 Recovery Towbar

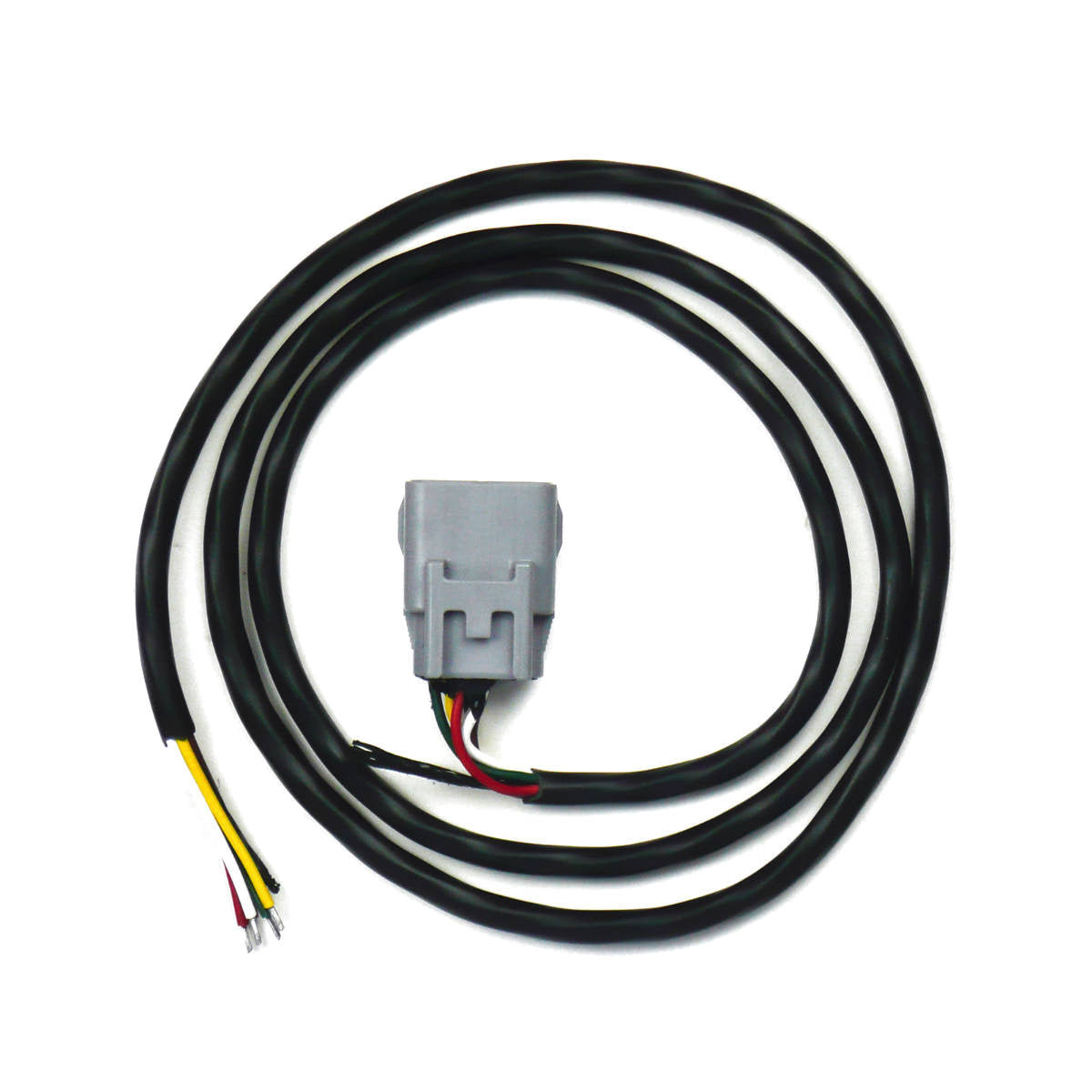

TAG Direct Fit Wiring Harness
TAG 7 Pin Flat Socket - Vehicle Side

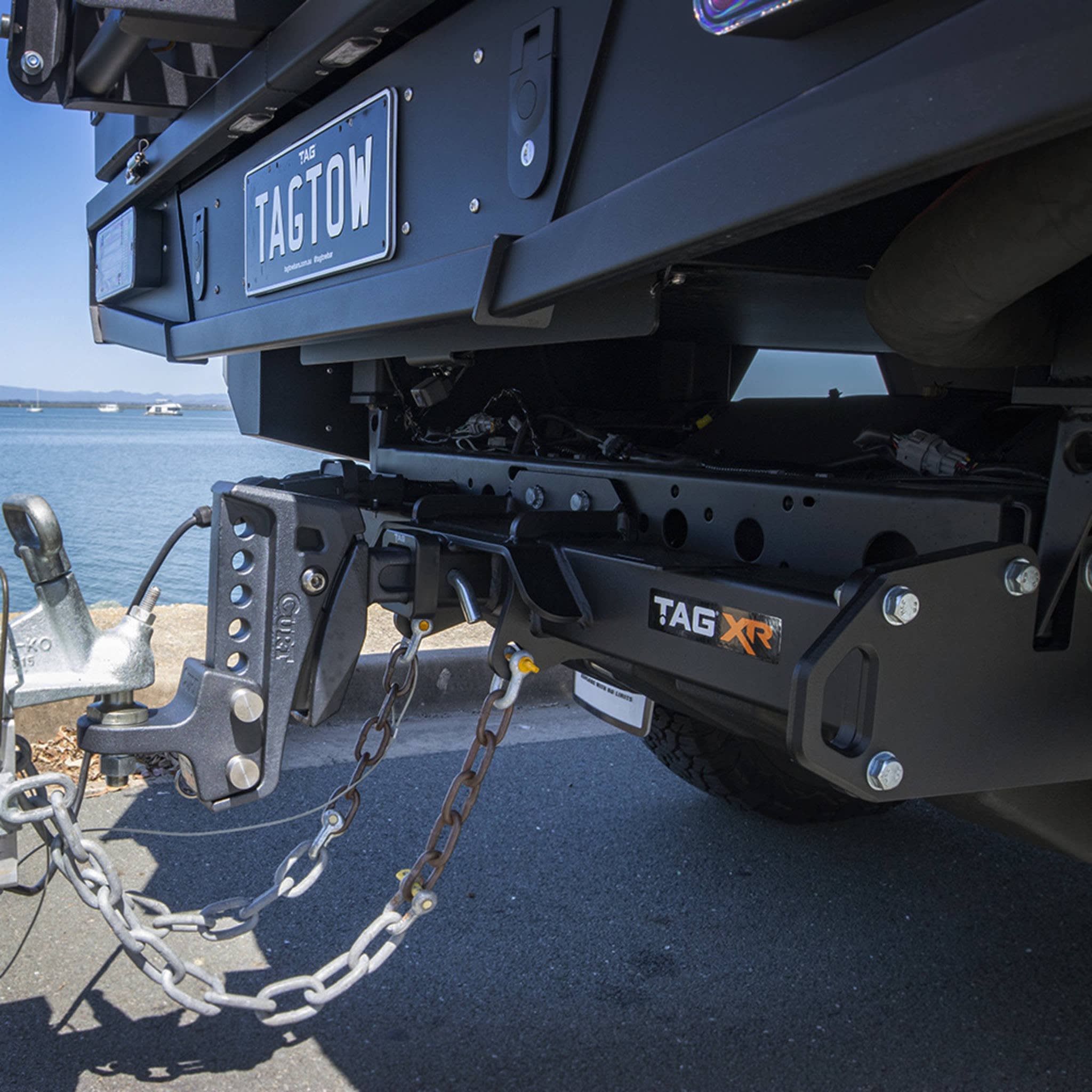

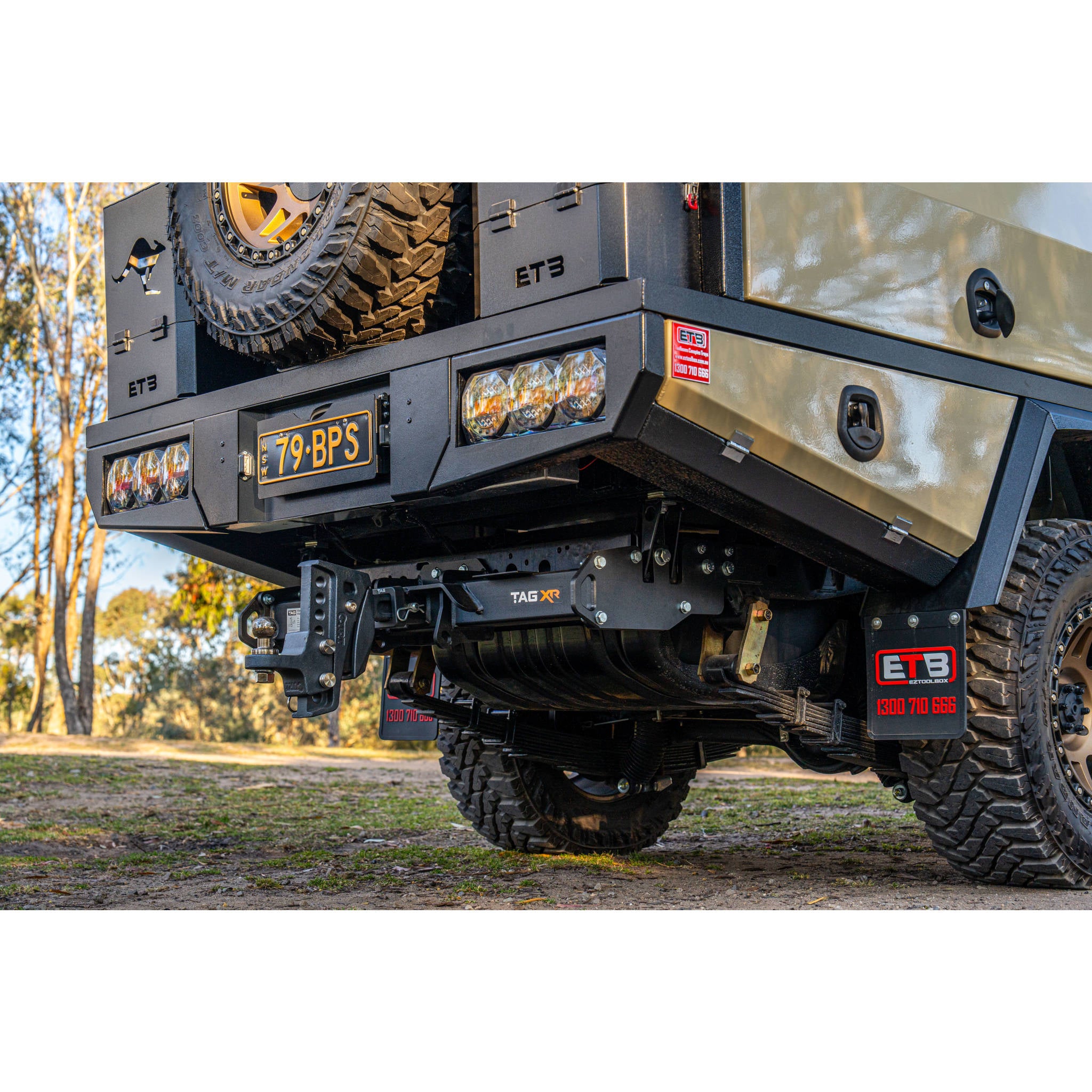

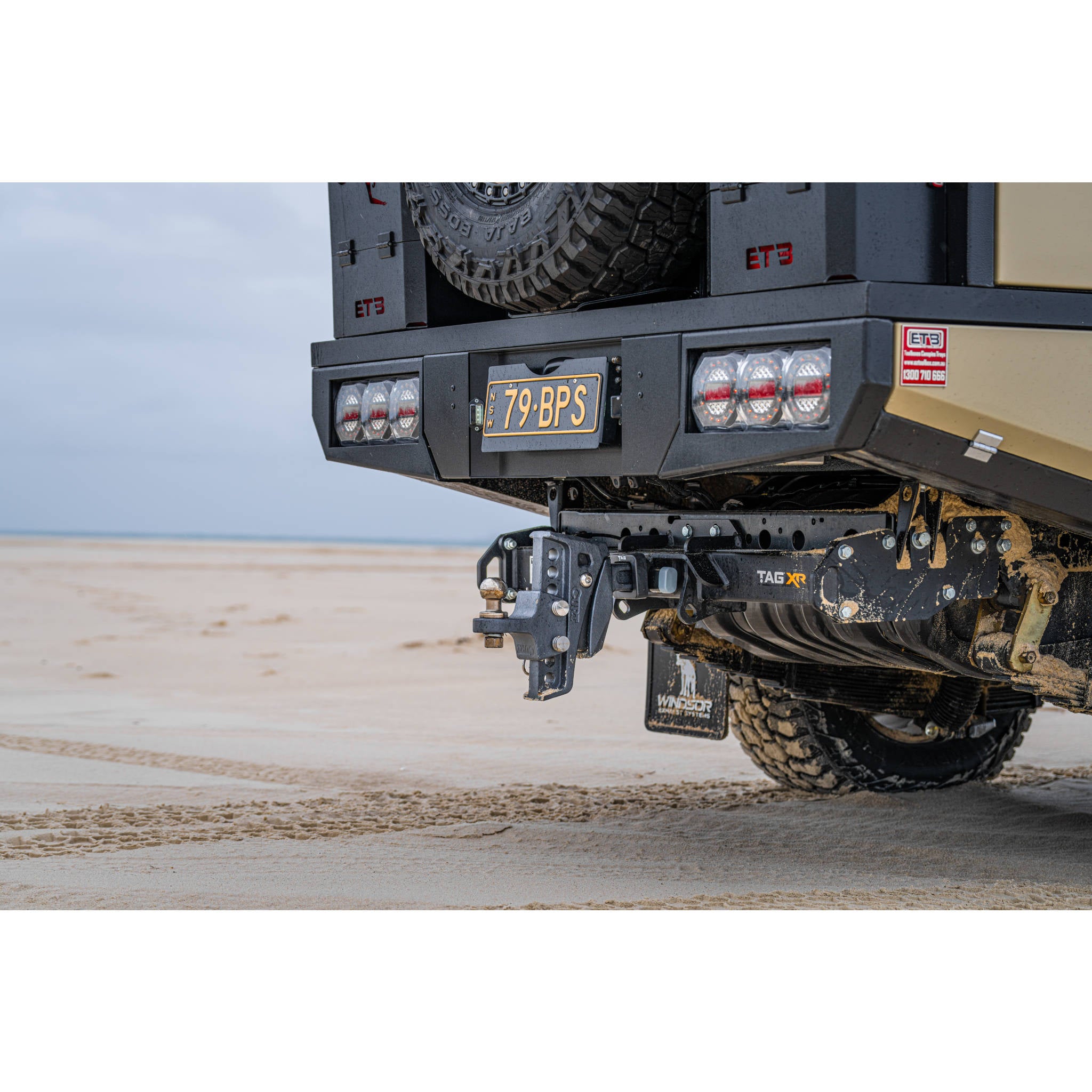

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications and adventurous offroaders alike needing to get themselves and their convoy out of the most challenging recovery situations.

79 Series 2012 On: To achieve full Towing Capacity of 4500kg/450kg you need to purchase a higher rated hitch and Tow Ball (eg. UNTTBM450, 45969-85-70, 70mm Tow Ball). Please check your vehicle owners manual as additional pre-registration modifications are required to legally tow 4500kg.

Narrow Nose 79 and 75 Series: Bar is only rated to 3500kg/350kg for these models due to chassis differences.

Featuring:

Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
89mm x 89mm Extreme Duty Reinforced Crossbar
Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit Soft-Shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Highly durable, textured Extreme Duty Powder Coated Finish
Dual top-mounted Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
