TAG

TAG Extreme Recovery Towbar and Direct Fit Wiring Harness for Toyota Hilux (10/2015 - on) Styleside

In stock
SKU: TXR819-K201
No reviews
$1,555.89
Specifications
  • Style 7 Pin Flat
  • Type Plugs & Sockets
  • Fitting time [min.] 60 (UNT335)
  • Fitting time [min.] 90 (TXR819)
  • Reverse sensor cut off Automatic
  • Diagnostic coding Not Applicable
  • Fog cut off Automatic
  • Wiring option Direct Fit ECU
  • Towbar class Heavy Duty (4x4 Recovery)
  • Towbar capacity [kg] 3500
  • Recovery load-tested 4000kg WLL
  • Recovery points 2
  • Hitch type 50mm Square Hitch Receiver
  • Coating Textured Powder Coated
  • Bumper cut out required No
  • Bumper removed during fitment Yes
  • Exposure Exposed
  • Ball weight [kg] 350
Vehicle Applications

Toyota Hilux (10/2015 - on)

Make Model From To Body Generation Chassis Engine Variant Drivetrain
TOYOTA HILUX 10/2015 - Ute - - 1GD-FTV | 2.8L | Hybrid (Diesel) D-4D 48V AWD
TOYOTA HILUX 10/2015 - Ute - - 1GD-FTV | 2.8L | Diesel GR Sport - 4X4
TOYOTA HILUX 10/2015 - Ute - - 1GD-FTV | 2.8L | Diesel D-4D AWD
TOYOTA HILUX 10/2015 - Ute - - 1GD-FTV | 2.8L | Diesel D-4D RWD
TOYOTA HILUX 10/2015 - Ute - - 2TRFE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
TOYOTA HILUX 10/2015 - Ute - - 1GD-FTV | 2.8L | Diesel SR AWD
TOYOTA HILUX 10/2015 - Ute - - 1GD-FTV | 2.8L | Diesel SR5 AWD
TOYOTA HILUX 10/2015 - Ute - - 1GD-FTV | 2.8L | Diesel SR5 Hi-Rider RWD
TOYOTA HILUX 10/2015 - Ute - - 1GD-FTV | 2.8L | Diesel SR Hi-Rider RWD
TOYOTA HILUX 10/2015 - Ute - - 2GD-FTV | 2.4L | Diesel Workmate AWD
TOYOTA HILUX 10/2015 - Ute - - 2GD-FTV | 2.4L | Diesel Workmate RWD
TOYOTA HILUX 10/2015 - Ute - - 2TR-FE | 2.7L | Petrol Workmate RWD
TOYOTA HILUX 10/2015 - Ute - - 2TR-FE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
TOYOTA HILUX 10/2015 - Ute - - 2GD-FTV | 2.4L | Diesel TDi AWD
TOYOTA HILUX 10/2015 - Ute - - 2GD-FTV | 2.4L | Diesel TDi RWD
TOYOTA HILUX 10/2015 - Ute - - 2TR-FE | 2.7L | Petrol VVTi RWD
TOYOTA HILUX 10/2015 04/2020 Ute - - 1GD-FTV | 2.8L | Diesel ROGUE, RUGGED, RUGGED X, SR5, SR5+ Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Ute - - 1GD-FTV | 2.8L | Diesel SR HI-RIDER Automatic/Manual RWD
TOYOTA HILUX 10/2015 04/2020 Ute - - 2GD-FTV | 2.4L | Diesel WORKMATE Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Ute - - 1GD-FTV | 2.8L | Diesel D-4D AWD
TOYOTA HILUX 10/2015 04/2020 Ute - - 1GD-FTV | 2.8L | Diesel D-4D RWD
TOYOTA HILUX 10/2015 06/2019 Ute - - 2GD-FTV | 2.4L | Diesel WORKMATE Manual RWD
TOYOTA HILUX 10/2015 09/2019 Ute - - 1GD-FTV | 2.8L | Diesel SR5 EXTRA CAB Automatic 4WD
TOYOTA HILUX 10/2015 09/2017 Ute - - 1GD-FTV | 2.8L | Diesel SR EXTRA CAB Manual RWD
TOYOTA HILUX 10/2015 07/2017 Ute - - 1GD-FTV | 2.8L | Diesel D-4D RWD
TOYOTA HILUX 10/2015 09/2017 Ute - - 1GR-FE | 4.0L | Petrol SR Automatic RWD
TOYOTA HILUX 10/2015 09/2017 Ute - - 1GR-FE | 4.0L | Petrol SR5 Automatic 4WD
TOYOTA HILUX 10/2015 09/2017 Ute - - 1GD-FTV | 2.8L | Diesel SR5 HI-RIDER Automatic RWD
TOYOTA HILUX 10/2015 07/2017 Ute - - 1GR-FE | 4.0L | Petrol V6 VVTi AWD
TOYOTA HILUX 10/2015 07/2017 Ute - - 1GR-FE | 4.0L | Petrol V6 VVTi RWD
TOYOTA HILUX 10/2015 10/2017 Ute - - 1GR-FE | 4.0L | Petrol SR Automatic 4WD
TOYOTA HILUX 10/2015 09/2015 Ute - - 2KD-FTV | 2.5L | Diesel SR EXTRA CAB Manual RWD
Assembly Components
Description

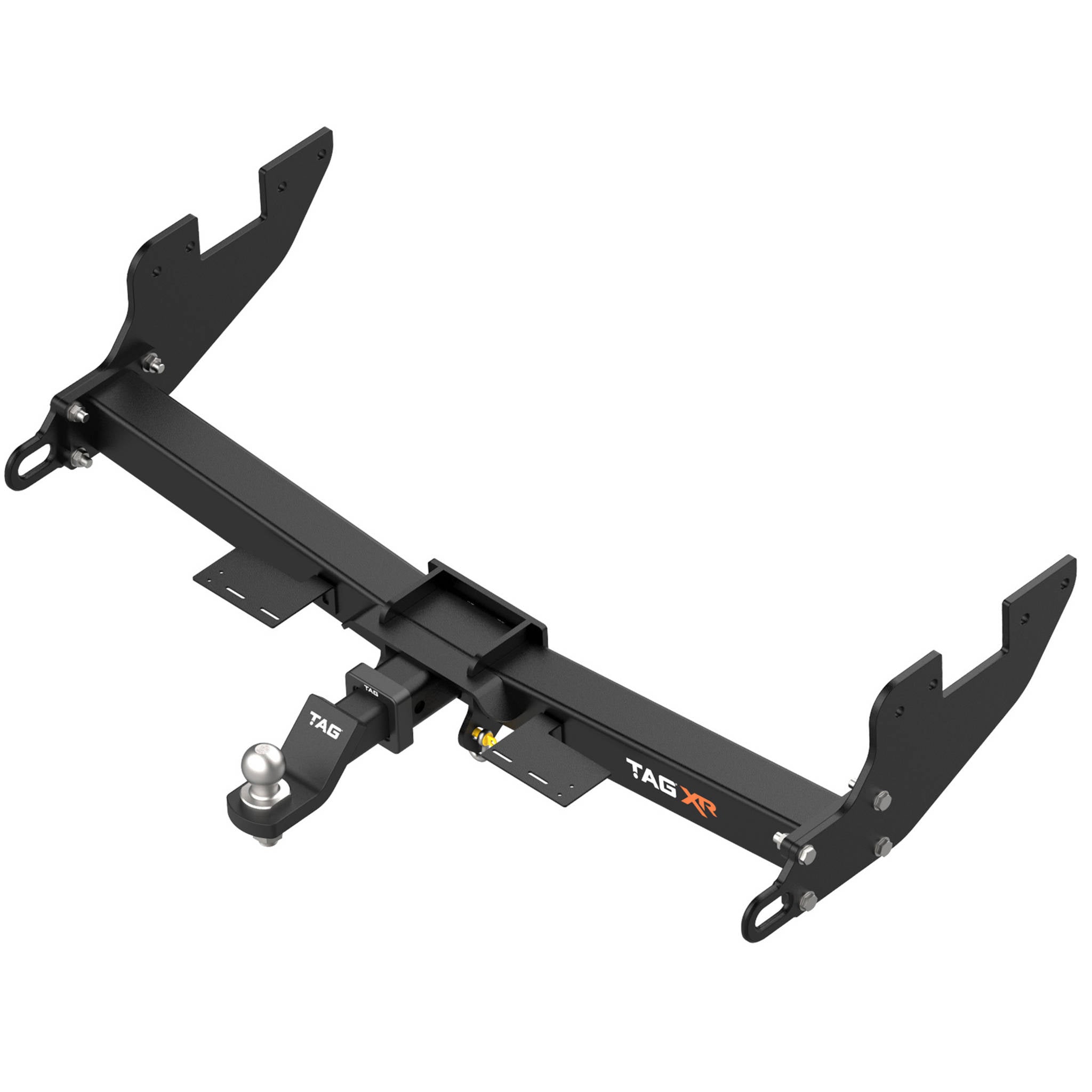

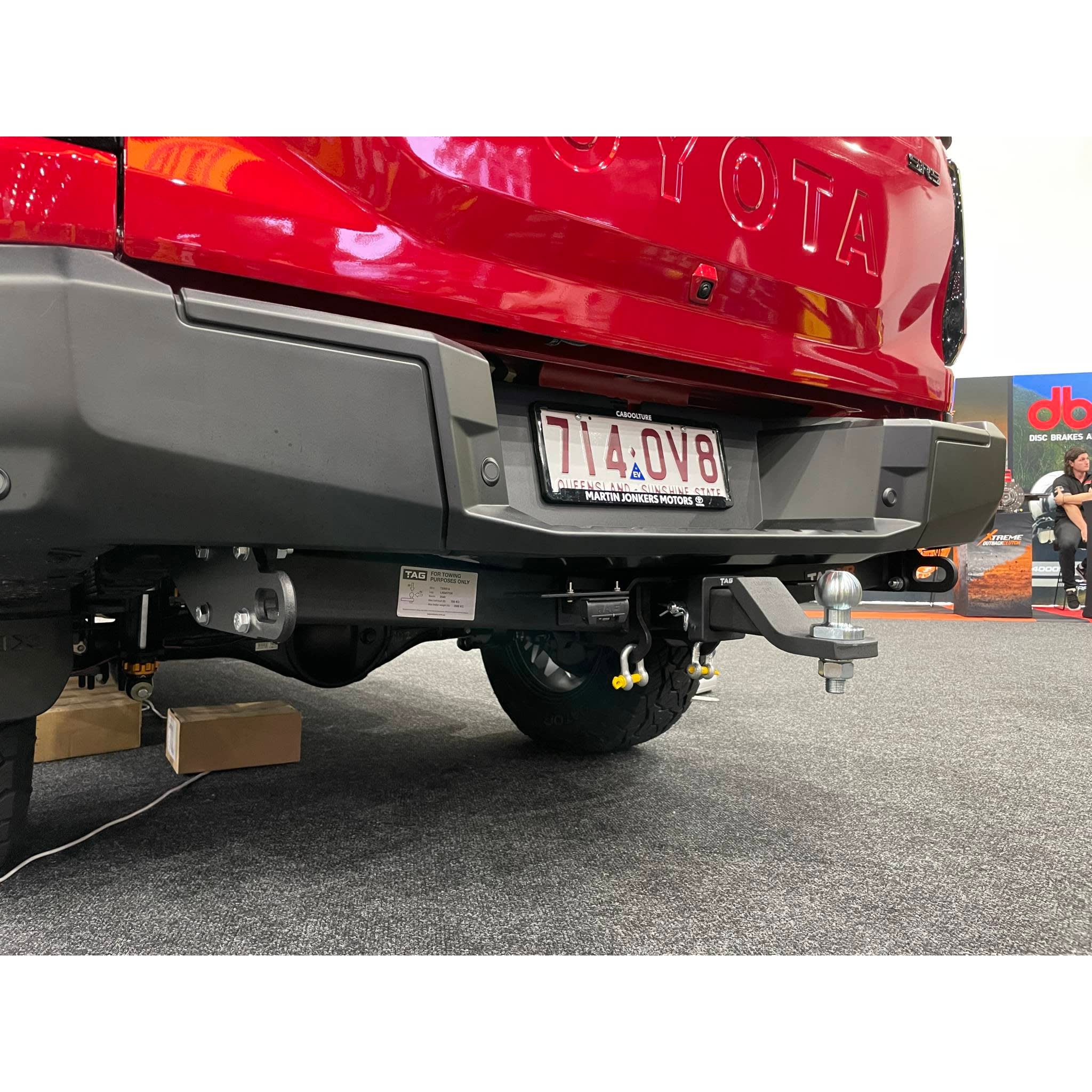

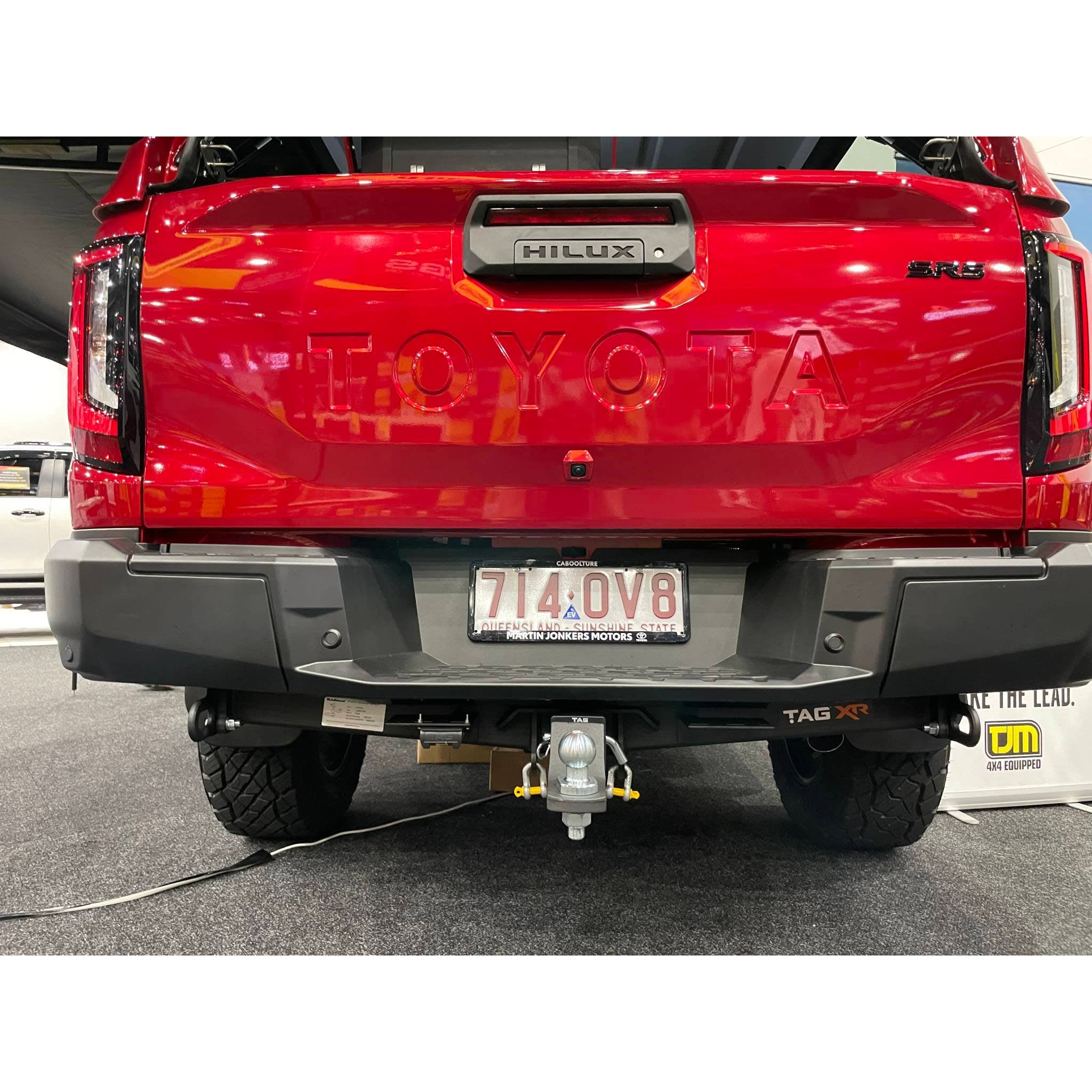

Extreme Recovery Towbar to suit (07/2015 - On) Hilux Tub / Styleside Models

This Kit Includes:

  • TAG 4x4 Recovery Towbar - (Suits Styleside models)

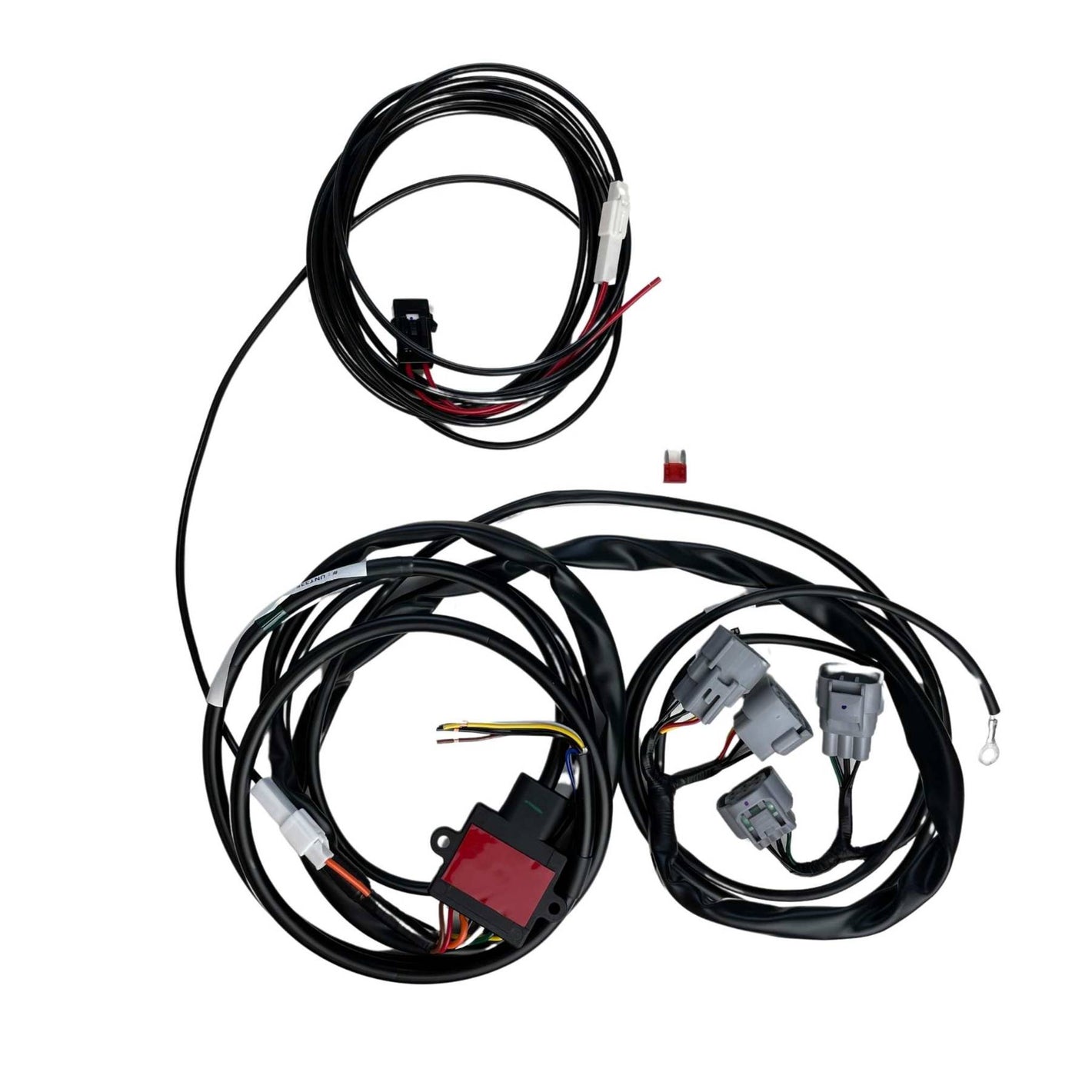

  • TAG Direct Fit Wiring Harness

  • TAG 7 Pin Flat Socket - Vehicle Side

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

  • 75mm x 75mm Extreme Duty Reinforced Crossbar

  • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Highly durable, textured Extreme Duty Powder Coated Finish

  • Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & Extreme Duty Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
