TAG Tow Ball Mount and Direct Fit Wiring Harness Kit For Toyota Hilux N80 (10/2015 - on)

In stock
SKU: TL4045-K201
No reviews
$430.87
Specifications
  • Type Hitch Pin (UNT080)
  • Type Plugs & Sockets (UNT032)
  • Coating Zinc Plated (UNT080)
  • Coating Powder Coated (L4045)
  • Hitch type Heavy Duty 50mm Square
  • Tow ball mount class Heavy Duty (Class 4)
  • Gross trailer weight 3500
  • Ball weight [kg] 350
  • Drop 18mm
  • Rise Can be used in Drop or Rise mode
  • Length (pin to ball) 208mm
  • Front to pin (mm) 250
  • Back to pin (mm) 90
  • Tongue face 135°
  • Length 338
  • Fitting time [min.] 60
  • Reverse sensor cut off Automatic
  • Diagnostic coding Not Applicable
  • Fog cut off Automatic
  • Wiring option Direct Fit ECU
  • Style 7 Pin Flat
Vehicle Applications

Toyota Hilux (07/2015 - on)

Make Model From To Body Series Engine Variant Drivetrain
TOYOTA HILUX 07/2015 - Cab Chassis GUN126 1GD-FTV | 2.8L | Hybrid (Diesel) D-4D 48V AWD
TOYOTA HILUX 07/2015 - Ute GUN126 1GD-FTV | 2.8L | Hybrid (Diesel) D-4D 48V AWD
TOYOTA HILUX 07/2015 - Ute GUN126 1GD-FTV | 2.8L | Diesel GR Sport - 4X4
TOYOTA HILUX 07/2015 - Ute GUN126 1GD-FTV | 2.8L | Diesel D-4D AWD
TOYOTA HILUX 07/2015 - Cab Chassis GUN126 1GD-FTV | 2.8L | Diesel D-4D AWD
TOYOTA HILUX 07/2015 - Cab Chassis TGN121R 2TRFE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
TOYOTA HILUX 07/2015 - Cab Chassis GUN135R 2GD-FTV | 2.4L | Diesel Workmate Hi-Rider Manual RWD
TOYOTA HILUX 07/2015 - Ute GUN136 1GD-FTV | 2.8L | Diesel D-4D RWD
TOYOTA HILUX 07/2015 - Ute TGN121R 2TRFE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
TOYOTA HILUX 07/2015 - Ute GUN126 1GD-FTV | 2.8L | Diesel Rogue| Rugged| Rugged X 4WD
TOYOTA HILUX 07/2015 - Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR AWD
TOYOTA HILUX 07/2015 - Cab Chassis GUN123 1GD-FTV | 2.8L | Diesel SR RWD
TOYOTA HILUX 07/2015 - Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel Workmate AWD
TOYOTA HILUX 07/2015 - Cab Chassis GUN122R 2GD-FTV | 2.4L | Diesel Workmate RWD
TOYOTA HILUX 07/2015 - Ute GUN126R 1GD-FTV | 2.8L | Diesel SR AWD
TOYOTA HILUX 07/2015 - Ute GUN126R 1GD-FTV | 2.8L | Diesel SR5 AWD
TOYOTA HILUX 07/2015 - Ute GUN136R 1GD-FTV | 2.8L | Diesel SR5 Hi-Rider RWD
TOYOTA HILUX 07/2015 - Ute GUN136R 1GD-FTV | 2.8L | Diesel SR Hi-Rider RWD
TOYOTA HILUX 07/2015 - Ute GUN125R 2GD-FTV | 2.4L | Diesel Workmate AWD
TOYOTA HILUX 07/2015 - Ute GUN122R 2GD-FTV | 2.4L | Diesel Workmate RWD
TOYOTA HILUX 07/2015 - Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel TDi AWD
TOYOTA HILUX 07/2015 - Cab Chassis GUN112_, GUN122_, GUN125_, GUN135_ 2GD-FTV | 2.4L | Diesel TDi RWD
TOYOTA HILUX 07/2015 - Cab Chassis TGN111R, TGN121R 2TR-FE | 2.7L | Petrol VVTi RWD
TOYOTA HILUX 07/2015 - Cab Chassis TGN121 2TR-FE | 2.7L | Petrol Workmate RWD
TOYOTA HILUX 07/2015 - Cab Chassis TGN121R 2TR-FE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
TOYOTA HILUX 07/2015 - Ute TGN121 2TR-FE | 2.7L | Petrol Workmate RWD
TOYOTA HILUX 07/2015 - Ute TGN121R 2TR-FE | 2.7L | Petrol WORKMATE Automatic/Manual RWD
TOYOTA HILUX 07/2015 - Ute GUN125R 2GD-FTV | 2.4L | Diesel TDi AWD
TOYOTA HILUX 07/2015 - Ute GUN112R, GUN120R, GUN122R, GUN135R 2GD-FTV | 2.4L | Diesel TDi RWD
TOYOTA HILUX 07/2015 - Ute TGN111R, TGN121R, TGN136R 2TR-FE | 2.7L | Petrol VVTi RWD
TOYOTA HILUX 07/2015 04/2020 Cab Chassis GUN135R 2GD-FTV | 2.4L | Diesel Workmate Hi-Rider Manual RWD
TOYOTA HILUX 07/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
TOYOTA HILUX 07/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
TOYOTA HILUX 07/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR EXTRA CAB Automatic/Manual 4WD
TOYOTA HILUX 07/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE Automatic/Manual 4WD
TOYOTA HILUX 07/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE EXTRA CAB Automatic/Manual 4WD
TOYOTA HILUX 07/2015 04/2020 Ute GUN126R 1GD-FTV | 2.8L | Diesel ROGUE, RUGGED, RUGGED X, SR5, SR5+ Automatic/Manual 4WD
TOYOTA HILUX 07/2015 04/2020 Ute GUN136R 1GD-FTV | 2.8L | Diesel SR HI-RIDER Automatic/Manual RWD
TOYOTA HILUX 07/2015 04/2020 Ute GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE Automatic/Manual 4WD
TOYOTA HILUX 07/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel D-4D AWD
TOYOTA HILUX 07/2015 04/2020 Ute GUN126R 1GD-FTV | 2.8L | Diesel D-4D AWD
TOYOTA HILUX 07/2015 04/2020 Ute GUN136 1GD-FTV | 2.8L | Diesel D-4D RWD
TOYOTA HILUX 07/2015 06/2019 Cab Chassis GUN122R 2GD-FTV | 2.4L | Diesel WORKMATE Manual RWD
TOYOTA HILUX 07/2015 06/2019 Ute GUN122R 2GD-FTV | 2.4L | Diesel WORKMATE Manual RWD
TOYOTA HILUX 07/2015 09/2019 Ute GUN126R 1GD-FTV | 2.8L | Diesel SR5 EXTRA CAB Automatic 4WD
TOYOTA HILUX 07/2015 09/2017 Cab Chassis GUN123R 1GD-FTV | 2.8L | Diesel SR Manual RWD
TOYOTA HILUX 07/2015 09/2017 Ute GUN123R 1GD-FTV | 2.8L | Diesel SR EXTRA CAB Manual RWD
TOYOTA HILUX 07/2015 07/2017 Cab Chassis GUN123, GUN123R 1GD-FTV | 2.8L | Diesel D-4D RWD
TOYOTA HILUX 07/2015 07/2017 Ute GUN123 1GD-FTV | 2.8L | Diesel D-4D RWD
TOYOTA HILUX 07/2015 10/2017 Ute GGN125 1GR-FE | 4.0L | Petrol SR AWD
TOYOTA HILUX 07/2015 10/2017 Ute GGN120 1GR-FE | 4.0L | Petrol SR RWD
TOYOTA HILUX 07/2015 09/2017 Ute GGN120R 1GR-FE | 4.0L | Petrol SR Automatic RWD
TOYOTA HILUX 07/2015 09/2017 Ute GGN125R 1GR-FE | 4.0L | Petrol SR5 Automatic 4WD
TOYOTA HILUX 07/2015 10/2017 Ute GGN125 1GR-FE | 4.0L | Petrol SR5 AWD
TOYOTA HILUX 07/2015 09/2017 Ute GUN136R 1GD-FTV | 2.8L | Diesel SR5 HI-RIDER Automatic RWD
TOYOTA HILUX 07/2015 07/2017 Ute GGN125, GGN135 1GR-FE | 4.0L | Petrol V6 VVTi AWD
TOYOTA HILUX 07/2015 07/2017 Ute GGN120R, GGN135R 1GR-FE | 4.0L | Petrol V6 VVTi RWD
TOYOTA HILUX 07/2015 10/2017 Ute GGN125R 1GR-FE | 4.0L | Petrol SR Automatic 4WD
Assembly Components

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Description

TO SUIT HILUX WITH INTEGRATED TOWBAR SR5

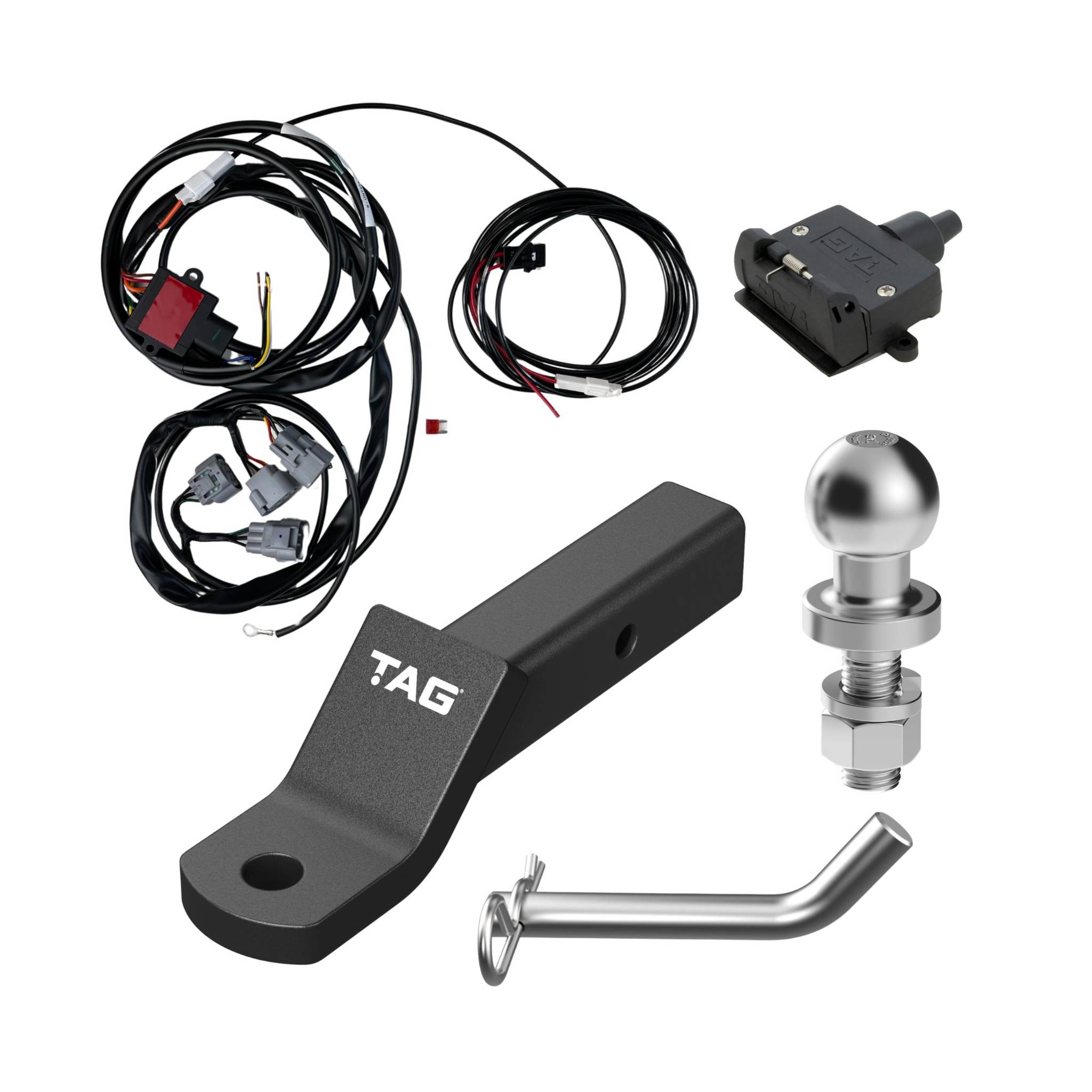

This kit includes

  • TAG Tow Ball Mount

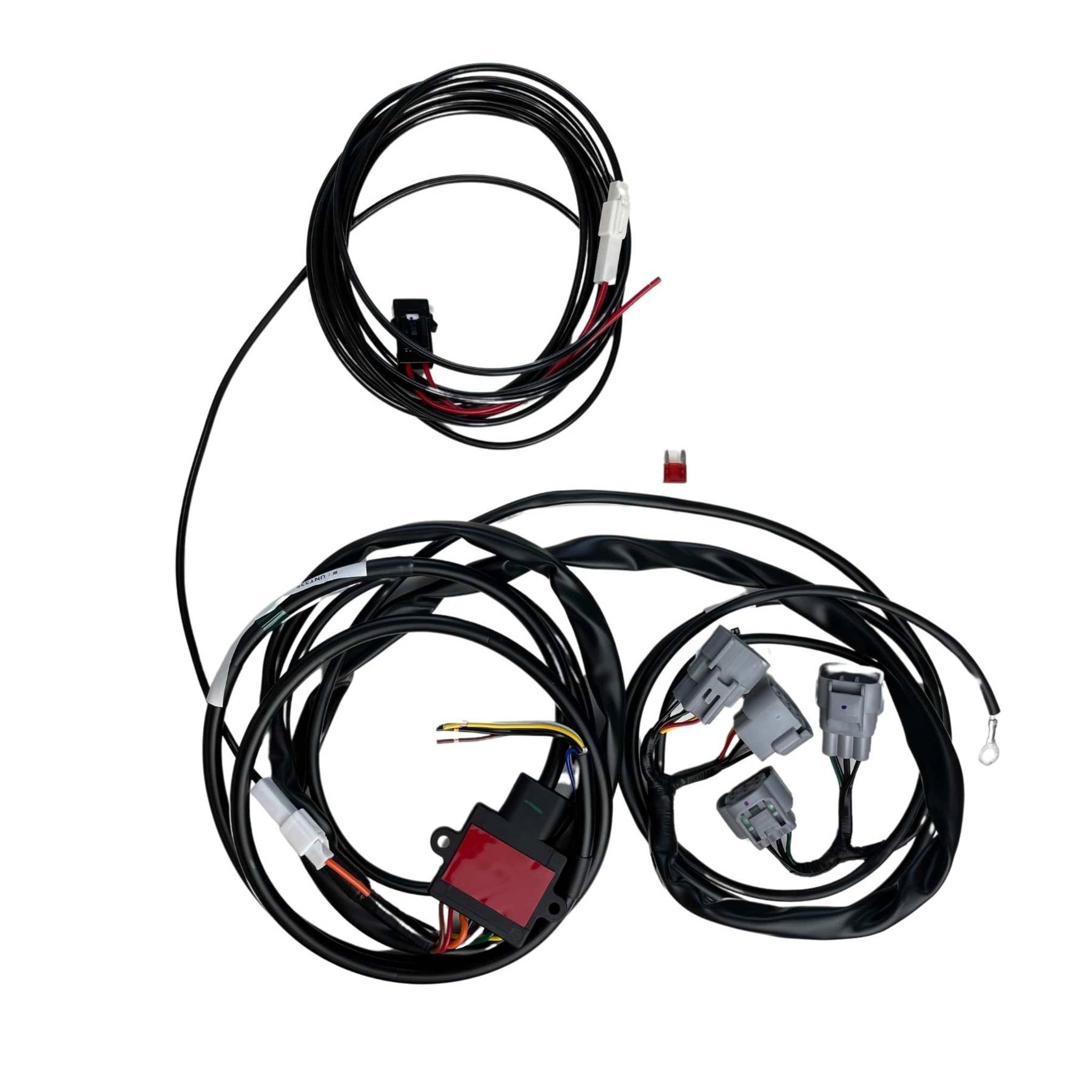

  • TAG Direct Fit Wiring Harnerss

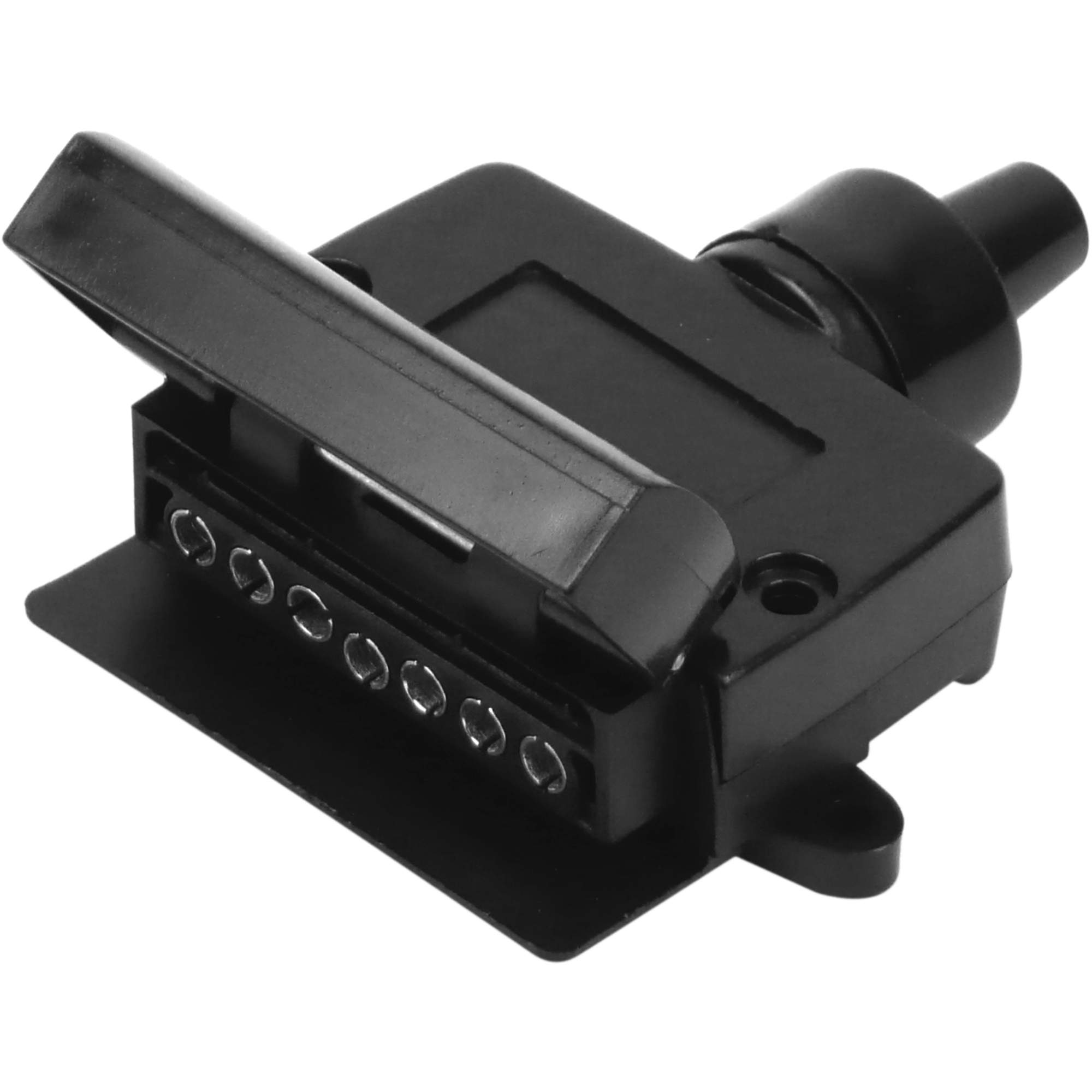

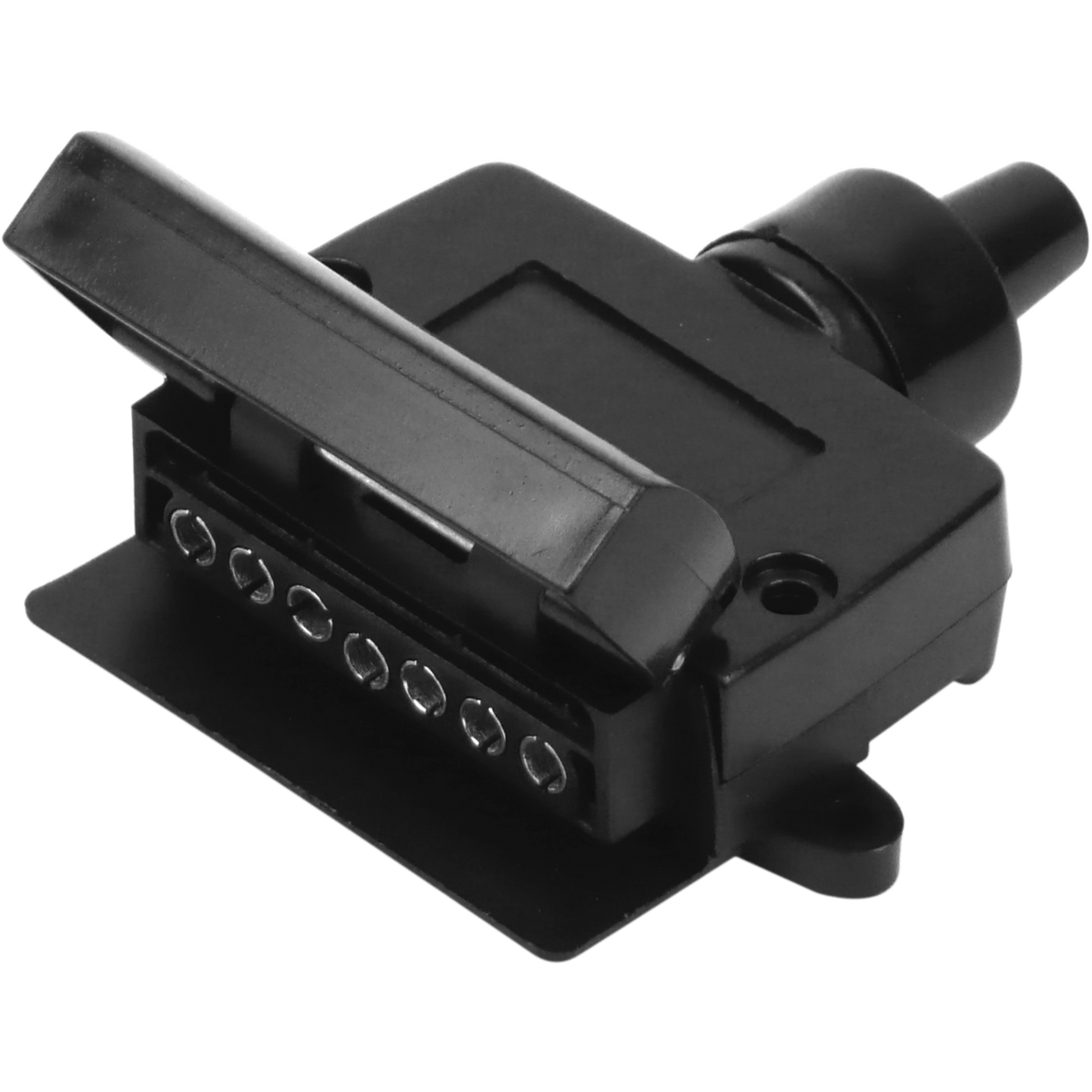

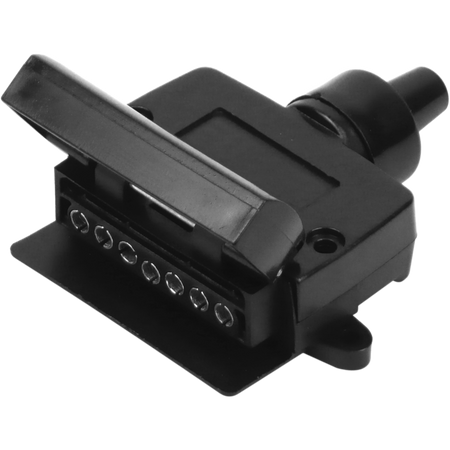

  • TAG 7 Pin Flat Socket Vehicle Side

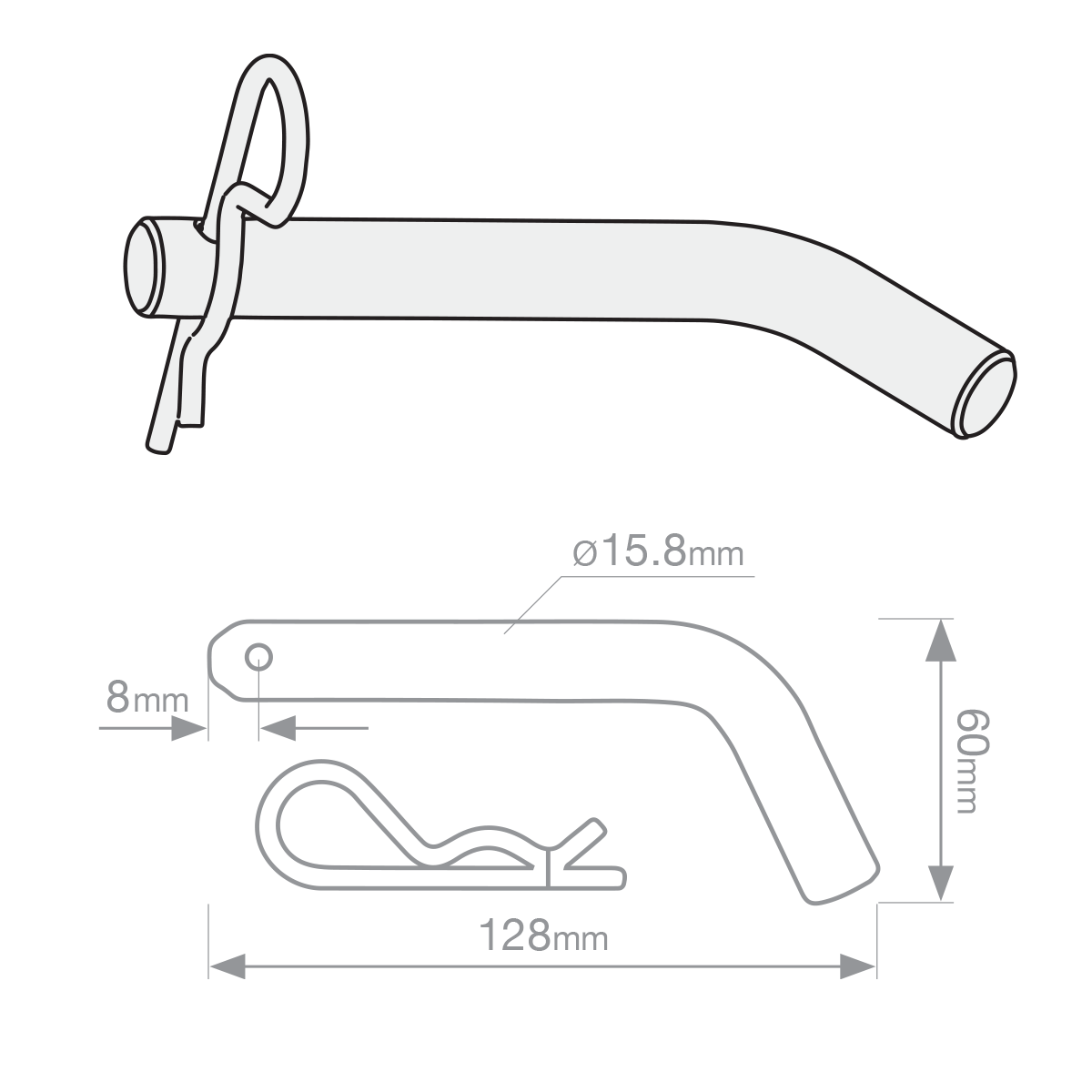

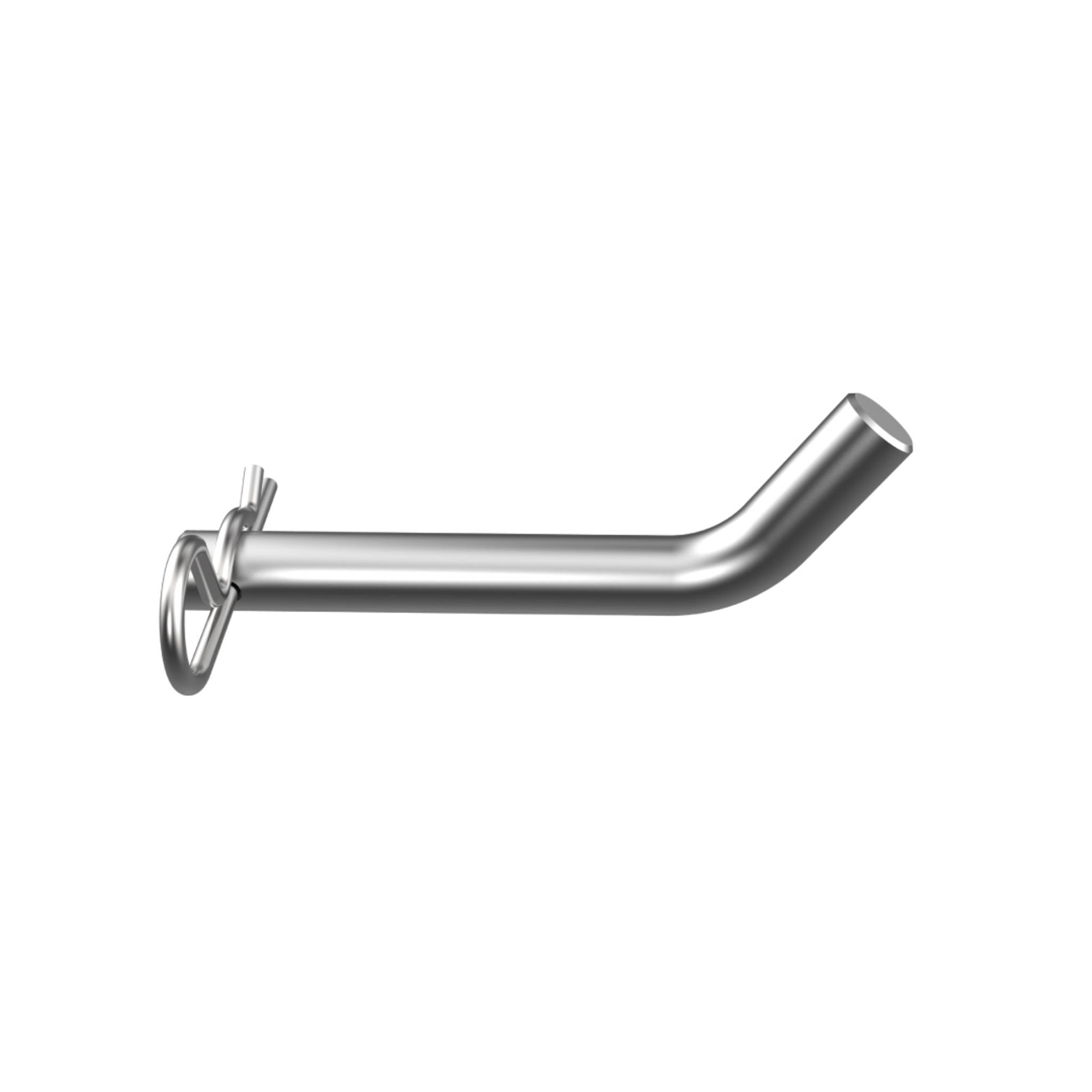

  • Pull Pin with Clip

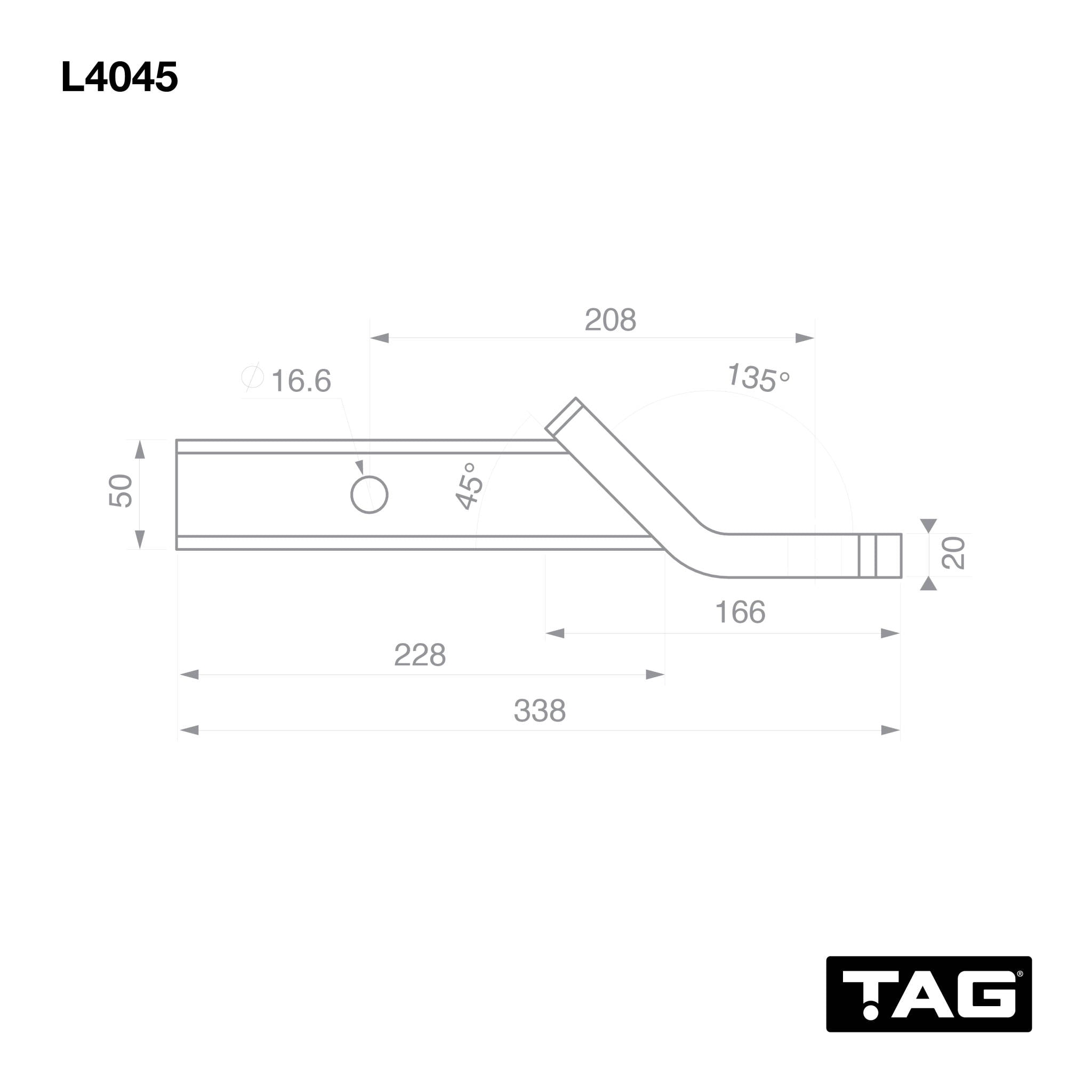

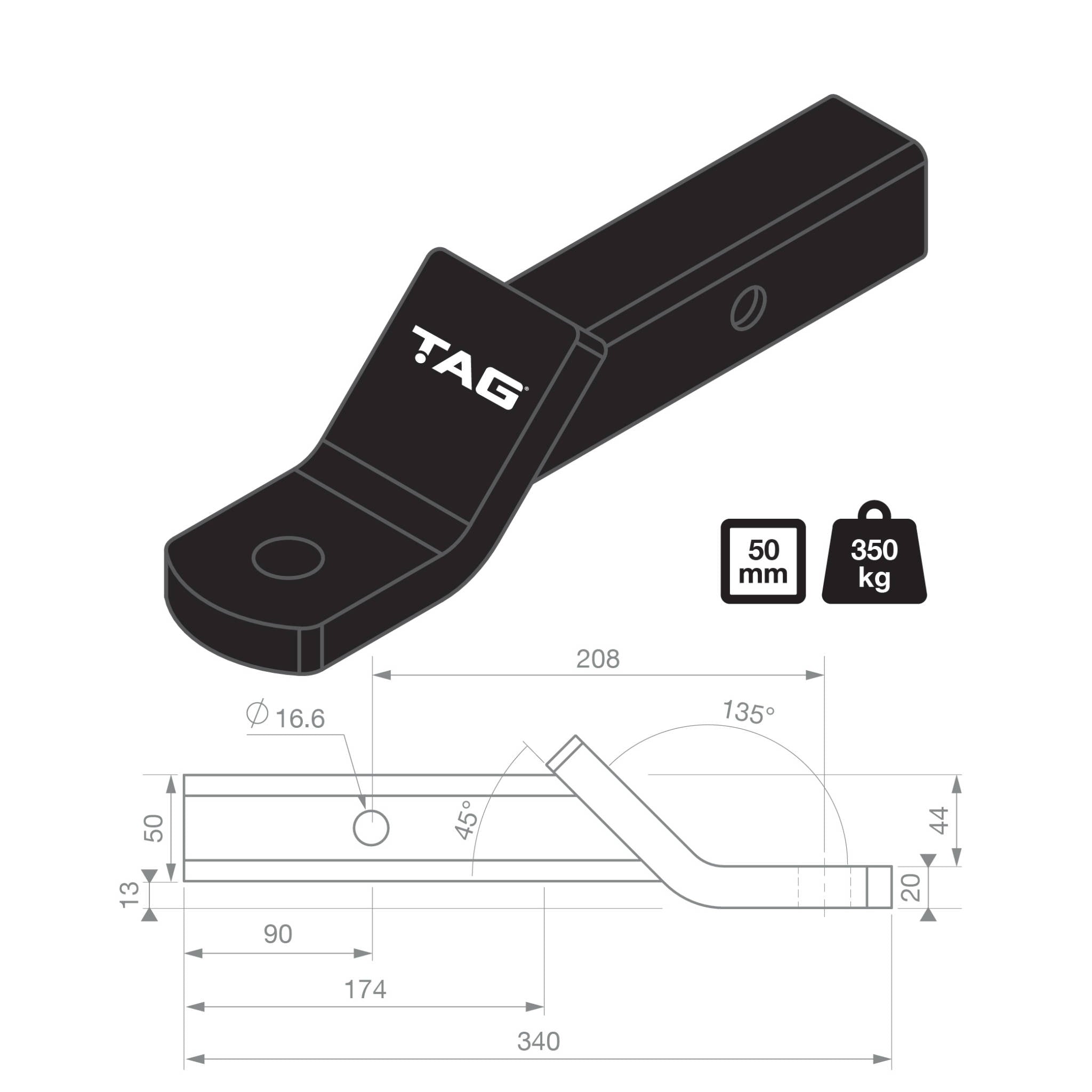

TAG Tow Ball Mounts are manufactured using drop-forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

  • 208mm Long (Hitch Pin Hole to Tow Ball Hole)

  • 135 Tongue Face

  • Drop: 0mm

  • Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball

  • 3500kg Gross Trailer Weight

  • 350kg Ball Weight

  • Durable Powder-Coated Finish

  • ADR 62/02 Compliant

  • TAG Limited Lifetime Warranty

Tow Ball sold separately.

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
