TAG

TAG Standard Duty Towbar and Direct Fit Wiring Harness for Toyota Hilux (10/1983 - 03/2005)

In stock
SKU: T2T078-K201
No reviews
$503.88
Specifications
  • Style 7 Pin Flat
  • Type Plugs & Sockets
  • Diagnostic coding Not Required
  • Reverse sensor cut off Not Applicable
  • Fog cut off Not Applicable
  • Wiring option Direct Fit Wiring Harness
  • Fitting time [min.] 30 (UNT225)
  • Fitting time [min.] 60 (T2T078)
  • Towbar class Standard Duty
  • Towbar capacity [kg] 1250
  • Hitch type Flat Fixed 2 Bolt
  • Tow ball mount L203
  • Coating Enamel Immersion Dipped
  • Bumper removed during fitment No
  • Bumper cut out required No
  • Exposure Exposed
  • Fits models with rear step No
  • Ball weight [kg] 100
Vehicle Applications

Toyota Hilux (08/1978 - 07/2005)

Make Model From To Body Generation Chassis Engine Variant Drivetrain
TOYOTA HILUX 08/2001 07/2005 Ute - - 5VZ-FE | 3.4L | Petrol EFI AWD
TOYOTA HILUX 08/2001 07/2005 Ute - - 5VZ-FE | 3.4L | Petrol EFI AWD
TOYOTA HILUX 08/2001 07/2005 Ute - - 5VZ-FE | 3.4L | Petrol EFI RWD
TOYOTA HILUX 08/2001 07/2005 Ute - - 5VZ-FE | 3.4L | Petrol EFI RWD
TOYOTA HILUX 09/2000 04/2005 Ute - - 5L-E | 3.0L | Diesel D RWD
TOYOTA HILUX 09/2000 04/2005 Ute - - 5L-E | 3.0L | Diesel D RWD
TOYOTA HILUX 12/1999 04/2005 Ute - - 1KZ-TE | 3.0L | Diesel TDi AWD
TOYOTA HILUX 12/1999 04/2005 Ute - - 1KZ-TE | 3.0L | Diesel TDi AWD
TOYOTA HILUX 01/1998 07/2005 Ute - - 5L-E | 3.0L | Diesel D AWD
TOYOTA HILUX 01/1998 07/2005 Ute - - 5L-E | 3.0L | Diesel D AWD
TOYOTA HILUX 01/1998 04/2005 Ute - - 3RZ-FE | 2.7L | Petrol EFI RWD
TOYOTA HILUX 01/1998 04/2005 Ute - - 3RZ-FE | 2.7L | Petrol EFI RWD
TOYOTA HILUX 11/1997 10/2002 Ute - - 3RZ-FE | 2.7L | Petrol EFI AWD
TOYOTA HILUX 11/1997 10/2002 Ute - - 3RZ-FE | 2.7L | Petrol EFI AWD
TOYOTA HILUX 08/1997 10/2002 Ute - - 1RZ-E | 2.0L | Petrol EFI RWD
TOYOTA HILUX 08/1997 10/2002 Ute - - 1RZ-E | 2.0L | Petrol EFI RWD
TOYOTA HILUX 08/1997 08/2000 Ute - - 5L | 3.0L | Diesel D RWD
TOYOTA HILUX 08/1997 08/2000 Ute - - 5L | 3.0L | Diesel D RWD
TOYOTA HILUX 10/1988 12/1998 Ute - - 22R | 2.4L | Petrol - RWD
TOYOTA HILUX 10/1988 12/1998 Ute - - 22R | 2.4L | Petrol - RWD
TOYOTA HILUX 09/1991 08/1997 Ute - - 3L | 2.8L | Diesel D RWD
TOYOTA HILUX 09/1991 08/1997 Ute - - 3L | 2.8L | Diesel D RWD
TOYOTA HILUX 10/1988 08/1997 Ute - - 22R | 2.4L | Petrol - AWD
TOYOTA HILUX 10/1988 08/1997 Ute - - 22R | 2.4L | Petrol - AWD
TOYOTA HILUX 10/1988 11/1997 Ute - - 2Y | 1.8L | Petrol - RWD
TOYOTA HILUX 10/1988 11/1997 Ute - - 2Y | 1.8L | Petrol - RWD
TOYOTA HILUX 10/1988 12/1997 Ute - - 3L | 2.8L | Diesel D AWD
TOYOTA HILUX 10/1988 12/1997 Ute - - 3L | 2.8L | Diesel D AWD
TOYOTA HILUX 10/1988 08/1991 Ute - - 2L | 2.4L | Diesel D RWD
TOYOTA HILUX 10/1988 08/1991 Ute - - 2L | 2.4L | Diesel D RWD
TOYOTA HILUX 11/1983 03/1989 Ute - - 3Y, 3Y-C | 2.0L | Petrol - AWD
TOYOTA HILUX 11/1983 03/1989 Ute - - 3Y, 3Y-C | 2.0L | Petrol - AWD
TOYOTA HILUX 08/1983 12/1989 Ute - - 4Y | 2.2L | Petrol - RWD
TOYOTA HILUX 08/1983 03/1989 Ute - - 2Y, 2Y-C | 1.8L | Petrol - RWD
TOYOTA HILUX 08/1983 03/1989 Ute - - 2Y, 2Y-C | 1.8L | Petrol - RWD
TOYOTA HILUX 08/1983 12/1989 Ute - - 4Y | 2.2L | Petrol - RWD
TOYOTA HILUX 11/1985 09/1988 Ute - - 4Y | 2.2L | Petrol - AWD
TOYOTA HILUX 11/1985 09/1988 Ute - - 4Y | 2.2L | Petrol - AWD
TOYOTA HILUX 08/1983 07/1988 Ute - - 2L | 2.4L | Diesel D AWD
TOYOTA HILUX 08/1983 07/1988 Ute - - 2L | 2.4L | Diesel D AWD
TOYOTA HILUX 11/1983 09/1987 Ute - - 3Y | 2.0L | Petrol - RWD
TOYOTA HILUX 11/1983 09/1987 Ute - - 3Y | 2.0L | Petrol - RWD
TOYOTA HILUX 11/1983 09/1987 Ute - - 1Y | 1.6L | Petrol - RWD
TOYOTA HILUX 11/1983 09/1987 Ute - - 1Y | 1.6L | Petrol - RWD
TOYOTA HILUX 08/1983 12/1984 Ute - - L | 2.2L | Diesel D RWD
TOYOTA HILUX 08/1983 12/1984 Ute - - L | 2.2L | Diesel D RWD
TOYOTA HILUX 01/1979 07/1983 Ute - - 18R | 2.0L | Petrol - AWD
TOYOTA HILUX 01/1979 07/1983 Ute - - 18R | 2.0L | Petrol - AWD
TOYOTA HILUX 01/1979 07/1983 Ute - - 18R | 2.0L | Petrol - RWD
TOYOTA HILUX 01/1979 07/1983 Ute - - 18R | 2.0L | Petrol - RWD
TOYOTA HILUX 08/1978 07/1983 Ute - - 12R | 1.6L | Petrol - RWD
TOYOTA HILUX 08/1978 07/1983 Ute - - 12R | 1.6L | Petrol - RWD
Assembly Components
Description

Suits 2WD & 4WD, Without Bumper or Step

This Kit Includes:

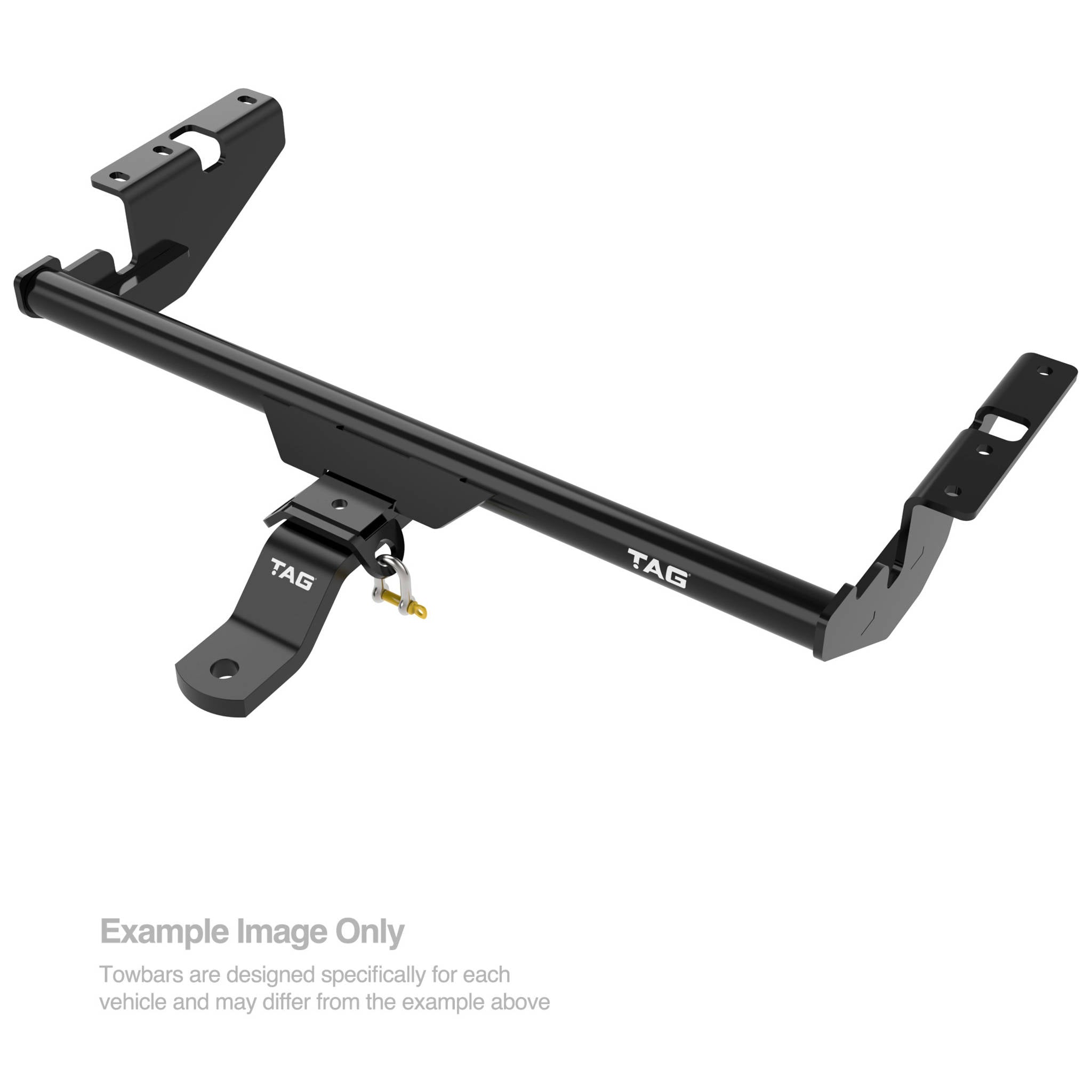

  • TAG Standard Duty Towbar

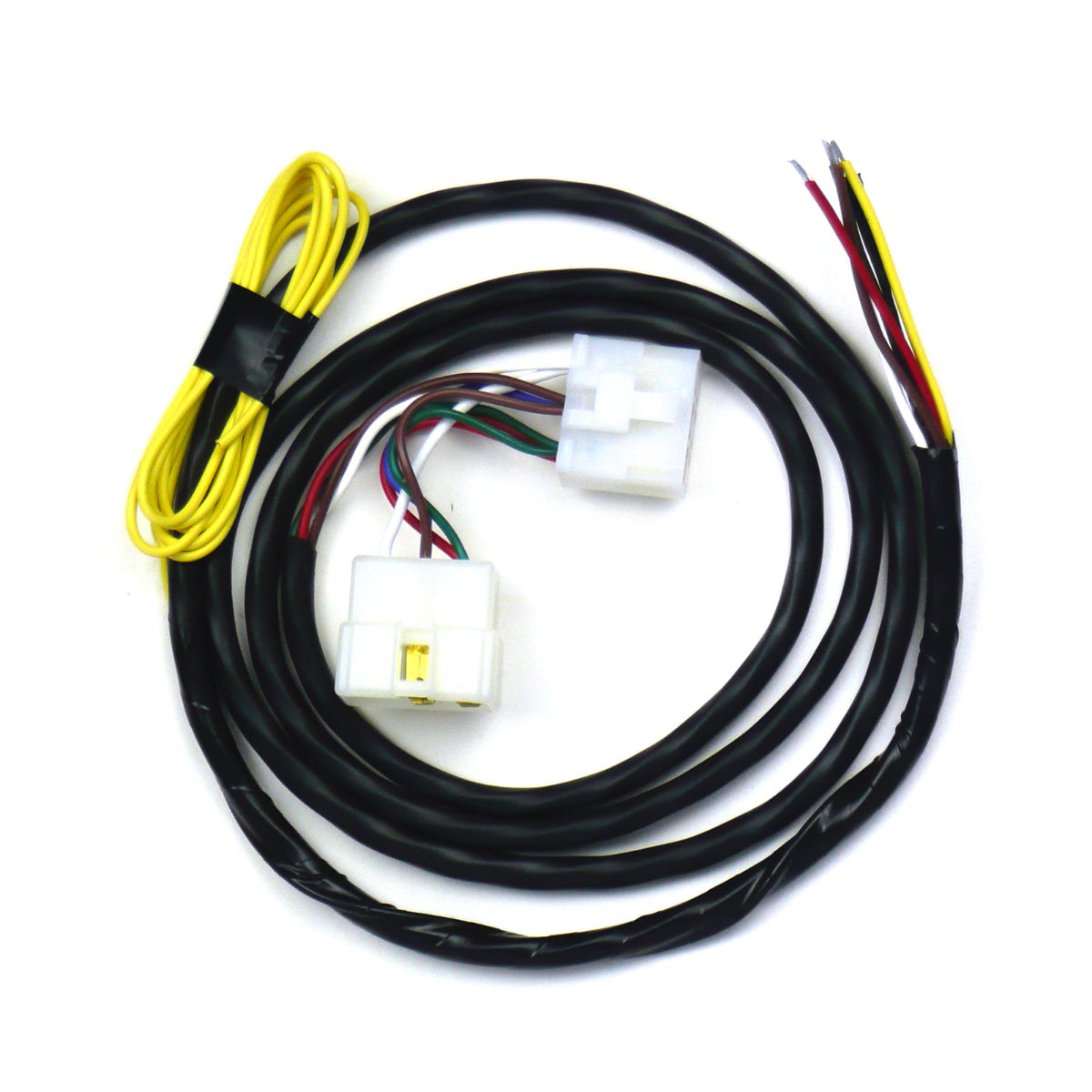

  • TAG Direct Fit Wiring Harness

  • TAG 7 Pin Flat Socket - Vehicle Side

TAG Standard Duty Towbars are designed and manufactured in Australia and feature:

  • Factory Mounting Points for ease of fitment

  • Durable Powder Coated Finish

  • Flat Fixed 2-Bolt Tow Ball Mount

  • TAG Limited Lifetime Warranty

  • Towbar includes Tow Ball

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
