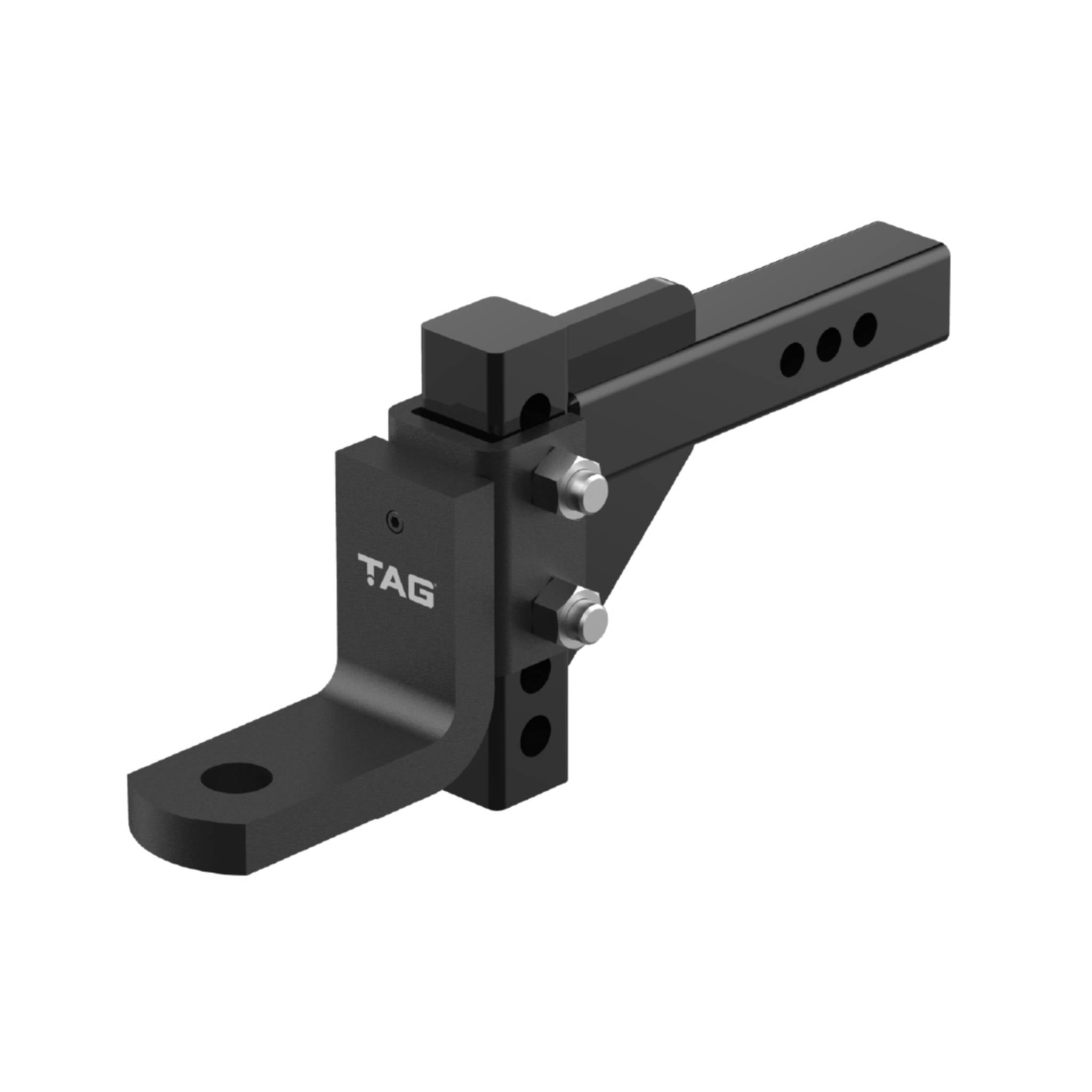

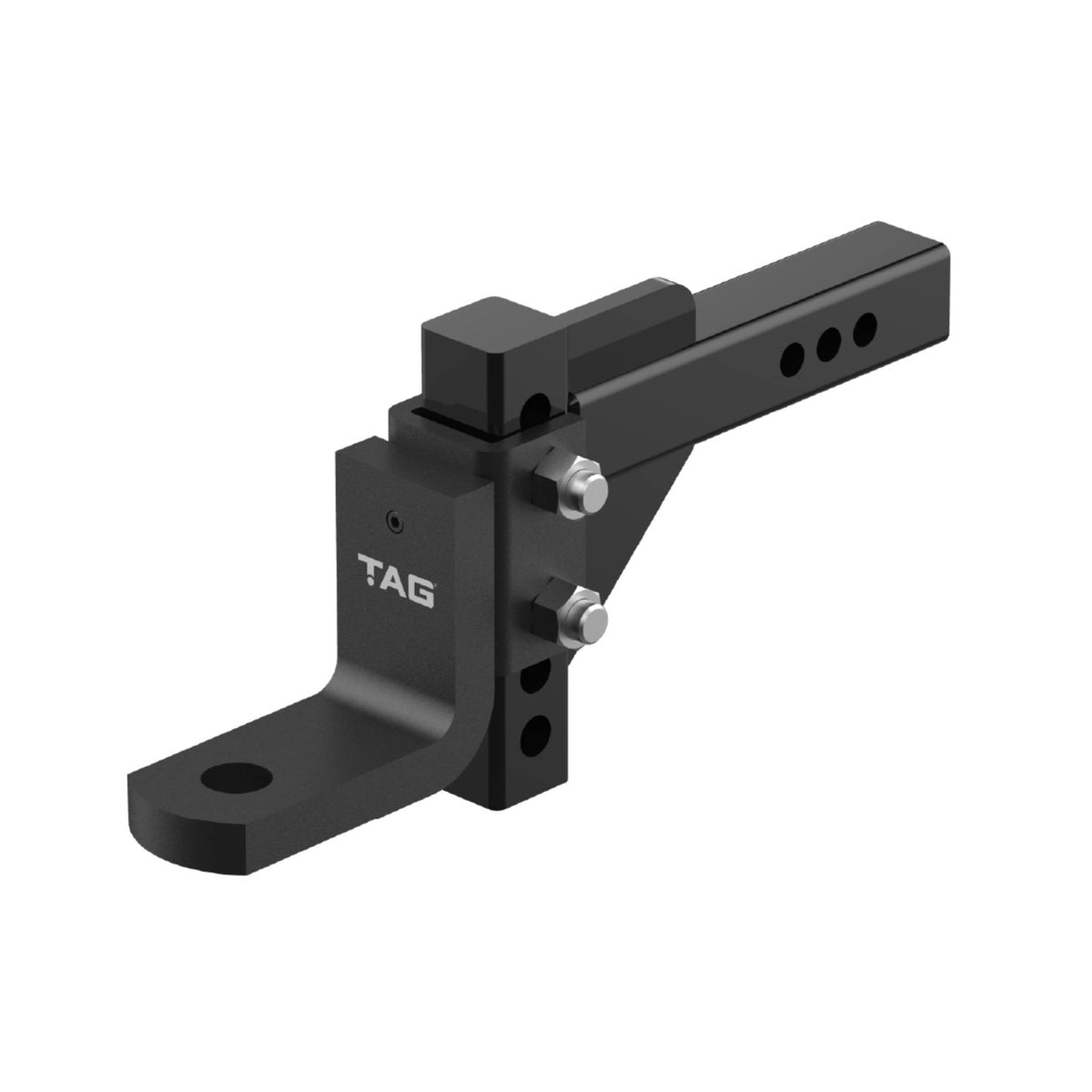

The TAG Adjustable Heavy Duty Tow Ball Mount is a strong and reliable towing solution designed to provide flexible tow ball positioning for a wide range of towing setups. Featuring a heavy-duty 50mm square shank, separate 90° tongue face and four adjustable positions, this tow ball mount can be configured in drop or rise mode to achieve the required towing height. Constructed from solid steel with a durable powder-coated finish, it provides excellent durability, corrosion resistance and dependable towing performance, with a rated gross trailer mass of up to 3500kg when used with a suitable 50mm tow ball.
KEY FEATURES
TAG Adjustable Heavy Duty Tow Ball Mount
Heavy-duty 50mm square hitch shank
90° separate tongue face
Four adjustable tongue positions

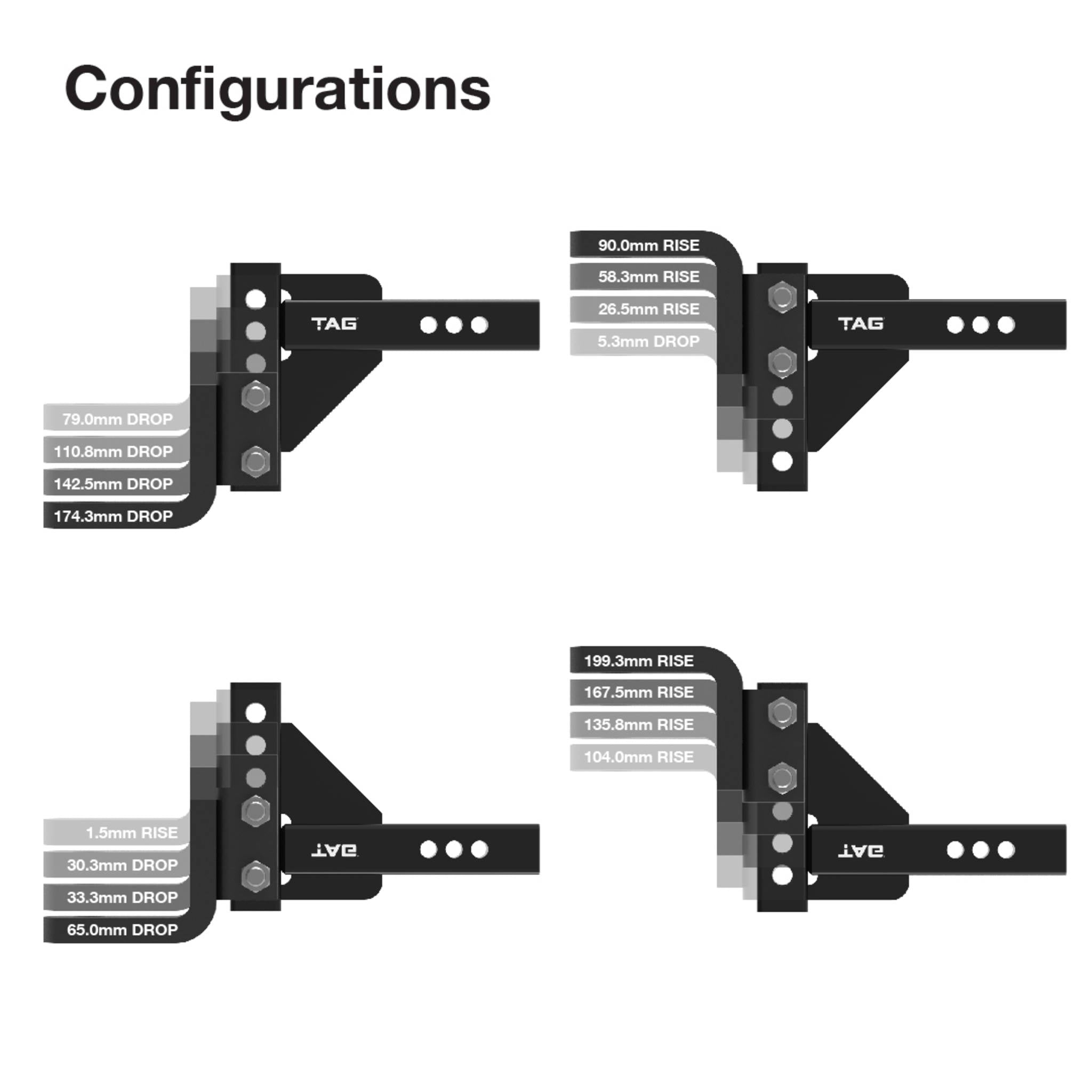

Can be installed in Drop Mode or Rise Mode
174mm maximum drop
199mm maximum rise
Includes reducer bush to suit 50mm or 70mm tow ball
3500kg gross trailer rating with suitable 50mm tow ball
350kg maximum ball weight with suitable 50mm tow ball
Solid steel construction
Durable powder-coated finish
Finish designed to resist rust, corrosion and chipping
ADR 62/02 compliant
Torque specification: 441Nm
Includes nuts, bolts and washers
TAG Limited Lifetime Warranty
COMPATIBILITY
Towbar Compatibility:
Designed for compatible 50mm square hitch receivers
Adjustable design suits different towing height requirements
Can be configured in drop or rise orientation
Reducer bush included to suit compatible 50mm or 70mm tow ball applications
Maximum 3500kg rating applies when used with a suitable 50mm tow ball
Vehicles Compatible:
Universal fit for vehicles equipped with a compatible 50mm square towbar receiver. Vehicle towing capacity and towbar specifications must always be checked before purchase.
This product is not vehicle-specific and does not have a fixed make, model or year range.
